3627-0004-3212
4mm ID Bearings$9.99 / 2 Pack -
3627-0006-3212
6mm ID Bearings$9.99 / 2 Pack -
3627-0008-3212
8mm ID Bearings$9.99 / 2 Pack -
3627-4008-3212
8mm REX™ ID Bearings$11.99 / 2 Pack -
1122-0045-1104
45 Hole1104mm Length$40.19 -
1122-0033-0816
33 Hole816mm Length$30.59 -
1122-0037-0912
37 Hole912mm Length$33.79 -
1122-0029-0720
29 Hole720mm Length$27.39 -
1122-0049-1200
49 Hole1200mm Length$42.99 -
1122-0041-1008
41 Hole1008mm Length$36.99 -
1122-0008-0216
8 Hole216mm Length$10.59 -
1122-0021-0528
21 Hole528mm Length$20.99 -
1122-0017-0432
17 Hole432mm Length$17.79 -
1122-0006-0168
6 Hole168mm Length$8.99 -
1122-0018-0456
18 Hole456mm Length$18.59 -
1122-0016-0408
16 Hole408mm Length$16.99 -

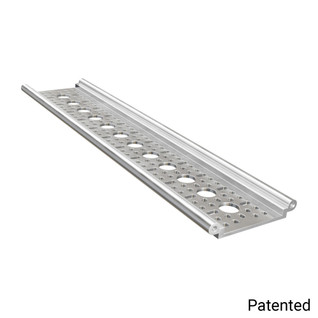

1122-0012-0312
12 Hole312mm Length$13.79 -
1122-0025-0624
25 Hole624mm Length$24.19 -
1122-0015-0384
15 Hole384mm Length$16.19 -

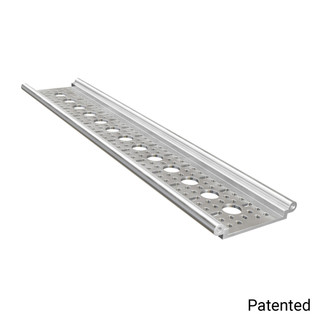

1122-0013-0336
13 Hole336mm Length$14.59 -
1122-0004-0120
4 Hole120mm Length$7.39 -
1122-0011-0288
11 Hole288mm Length$12.99 -
1122-0010-0264
10 Hole264mm Length$12.19 -

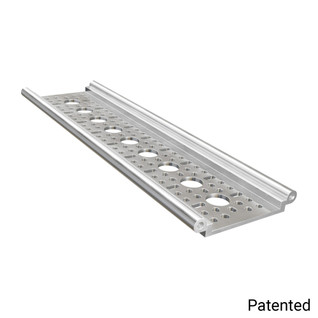

1122-0009-0240
9 Hole240mm Length$11.39 -
1122-0014-0360
14 Hole360mm Length$15.39 -
1122-0007-0192
7 Hole192mm Length$9.79 -
1122-0005-0144
5 Hole144mm Length$8.19 -
1122-0003-0096
3 Hole96mm Length$6.59 -
1122-0002-0072
2 Hole72mm Length$5.79 -

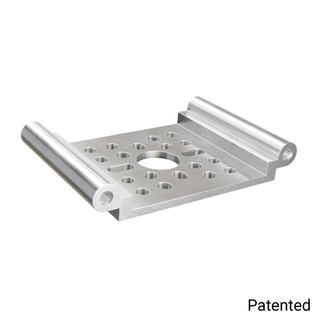

1122-0001-0048
1 Hole48mm Length$4.99
Rail-Channel and U-Wheels
Rail-Channel
Rail-Channel is a structural component with precision rails for U-Wheels to ride on to create smooth linear motion. The central goBILDA® pattern and threaded ends provide for the simple and solid attachment of drive mechanisms. With its capacity to be driven by belts, cables, and even lead screws, Rail-Channel is a fantastic railway into versatile back-and-forth action!
U-Wheels for Rail-Channel
Polycarbonate U-Wheels are a profile-match made in heaven for Rail-Channel! The U-shaped groove around the perimeter of a U-Wheel perfectly hugs the 8mm diameter rails on the outer edges of Rail-Channel. Each wheel rotates smoothly on a pair of pressed-in bearings so that linear motion can happen with ease and efficiency. Take note of the offset of the bearings—one is flush, and the other is nested into the wheel, allowing for more options for both the height of the carriage you plan to move and the clearance of the hardware resting on the opposing side.
