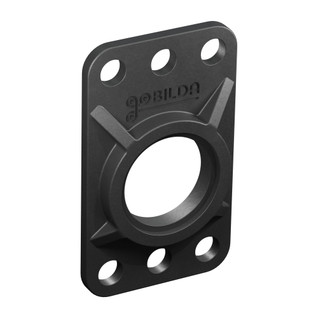

1616 Series Drop-Center Bearing Plate (32mm Pattern, 2mm Drop) - 4 Pack

SKU:
$6.99 / 4 Pack

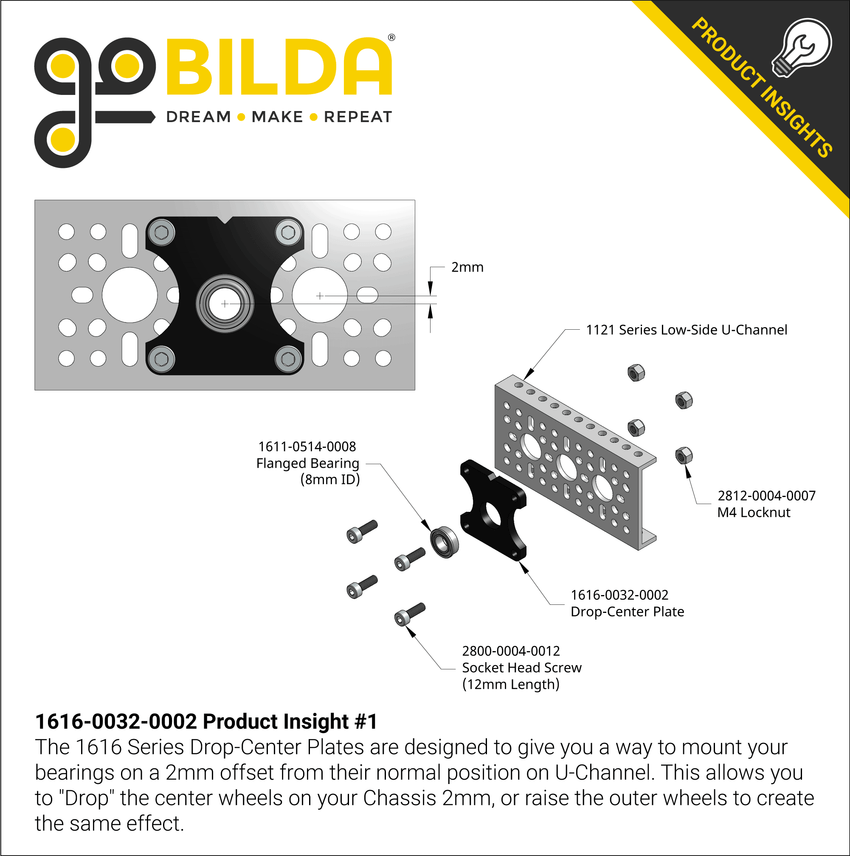

Drop-center bearing plates fasten to your chassis, on the 32mm pattern, providing a 2mm offset of the 14mm hole.  These plates are extremely handy for 6 wheel chassis builds where you want the center wheels to have more of the overall load than the front and/or back.  Unloading wheels located on the corners of your skid-steer chassis will provide much quicker turning and drive like a chassis with a much shorter wheelbase.  Given the 4mm plate thickness, the 1611 Series Bearings that have a 14mm OD will slide in and the flange will bottom out before the backside of the bearing makes contact with the channel that the plate is mounted to.

Downloads

Specs

Weight 6.1g Each
Material Plastic
Color Black
$6.99 / 4 Pack
