3402 Series 3mm HTD Pitch Plastic Hub Mount Timing Belt Pulley (14mm Bore, 108 Tooth)

SKU:

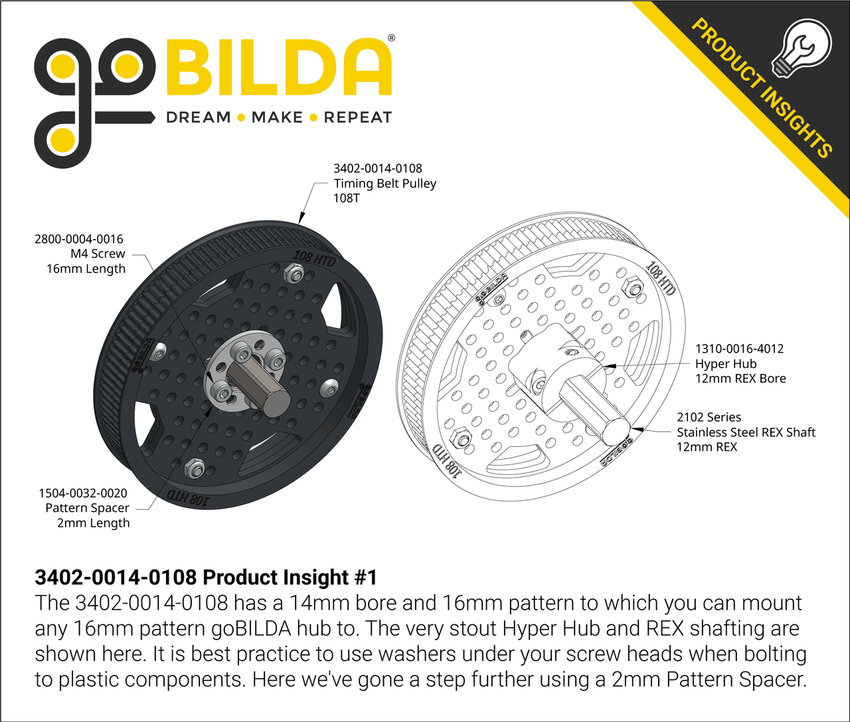

This 108 tooth timing pulley is a two piece pulley that nests together and fastens to the other half with M4 button head screws.  The diameter allows for the full pattern to be molded into the face so that you can fasten to the standard 16mm pattern or the larger 32mm pattern.  Comes preassembled with M4 screws and nuts as shown in image 1.

Downloads

Specs

Bore 14mm
Weight 65g
Material Plastic
Color Black
Tooth Count 108
Pitch 3mm (HTD)
$7.99
