3mm HTD Pitch Set-Screw Pinion Timing Belt Pulley (6mm D-Bore, 18 Tooth)
SKU:

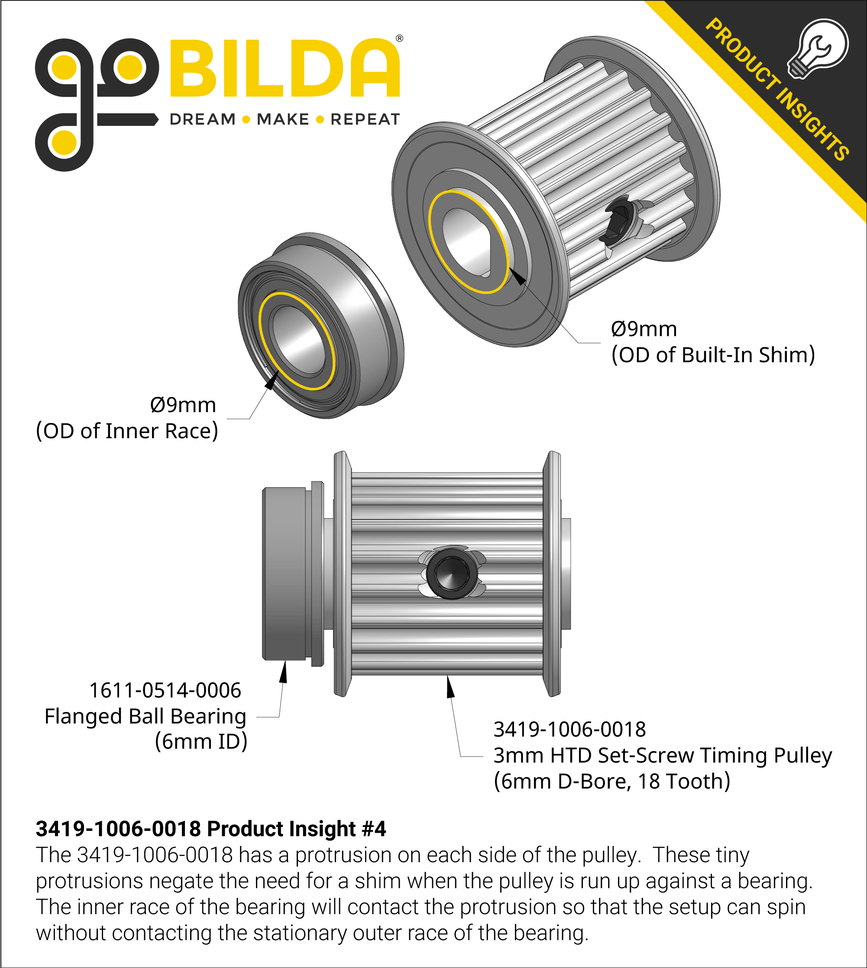

This 18 tooth set-screw pinion pulley has a 6mm D-Bore designed to fit our 6mm D-shaft or a gear motor which has a 6mm D-Shaft output. It is compatible with 15mm wide 3mm HTD timing belt and includes a built-in shim on both sides so that it can run right up against a bearing without the flanges rubbing on the outer race.
Downloads
Specs
| Weight | 8.1g |
|---|---|
| Material | Aluminum |
| Finish | Clear Anodized |
| Tooth Count | 18 |
| Pitch | 3mm HTD |
