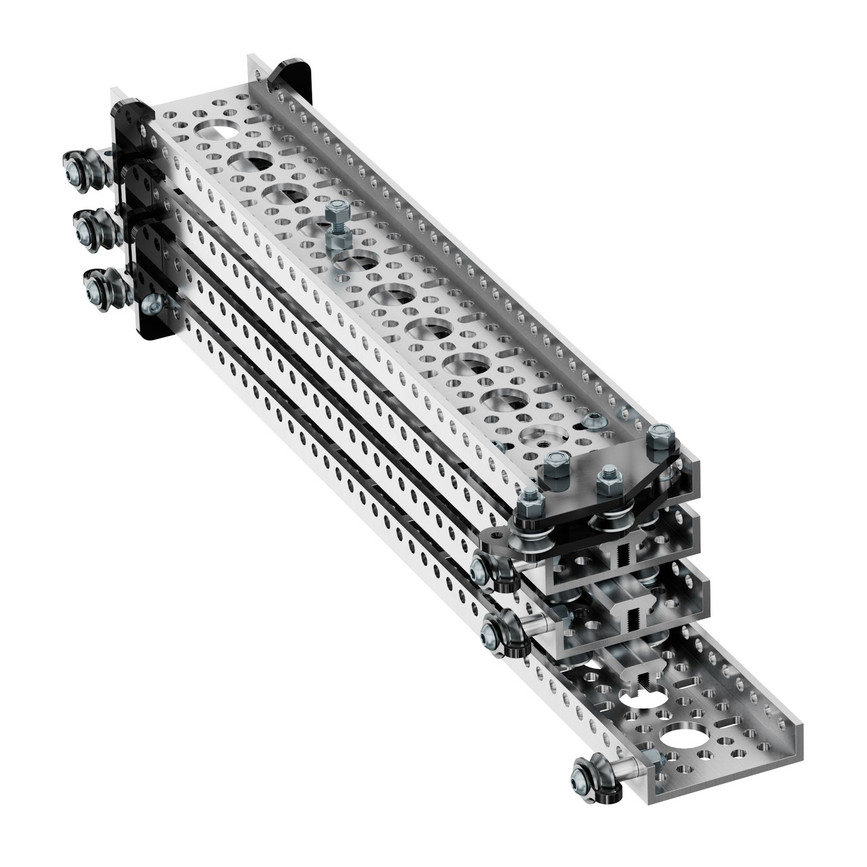

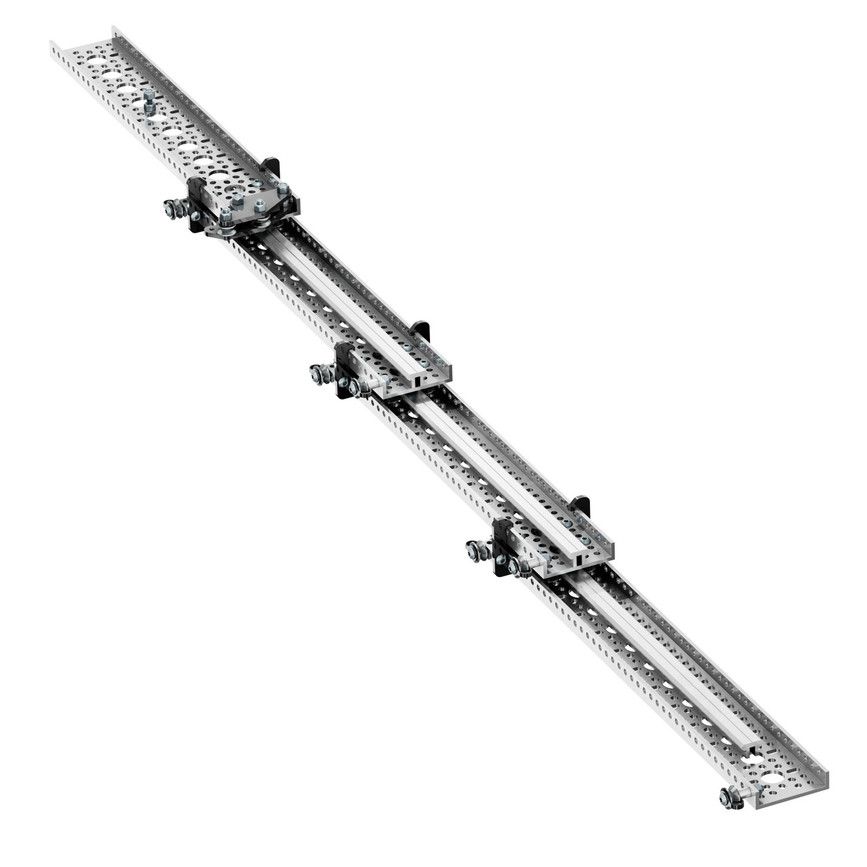

Cascading Kit for 1121 Series Low-Side U-Channel

SKU:

Selecting the parts to create a complex assembly, such as a cascading arm, can become challenging without having the physical parts on-hand. Due to popular demand, we’ve taken some of the guesswork out of the equation for you. This Cascading Kit comes with all the general pieces to assist in building a three stage cascading kit using the 1121 Series Low-Side U-Channel. We’ve purposefully left out items that you may wish to select on your own. Those items include:

1121 Series Low-Side U-Channel - The product insights show 1 x 1121-0013-0336 and 3 x 1121-0011-0288. The one longer length provides a convenient location to add a motor and pulley to. Other lengths of channel can be used in place of these to create a different sized cascading arm.

3700 Series V-Guides - We show using 3 x 3700-0145-0288 to run the V-Groove Bearings on, but if you decide to create a different length of cascading arm, different lengths can be used and these guides can easily be cut to length.

Motor - The 5202 Series Yellow Jacket Motor is our go-to, but if you are partial to another model, we do offer 36mm and 37mm clamping mounts that work well with some of the other motor options on the market.

Motor Mount - Given the usage of the 5202 Series Motor, the 1400-0032-0032 Clamping Mounts are a popular option. While one may suffice we opt for two for added stability. Remember, if you use a motor with a different diameter, make sure you use a 1400 Series 1-Side, 2-Post Clamping Mount that matches.

Spacers for Motor Mount - to create a minimal approach angle between the edge of the pulley and the first V-Groove Bearing used as a string guide, we suggest running aluminum spacers under the motor mount(s). 16mm happens to be the perfect size when using a 5202 Series Motor and the 1400-0032-0032 1-Side, 2-Post Clamping Mount suggested.

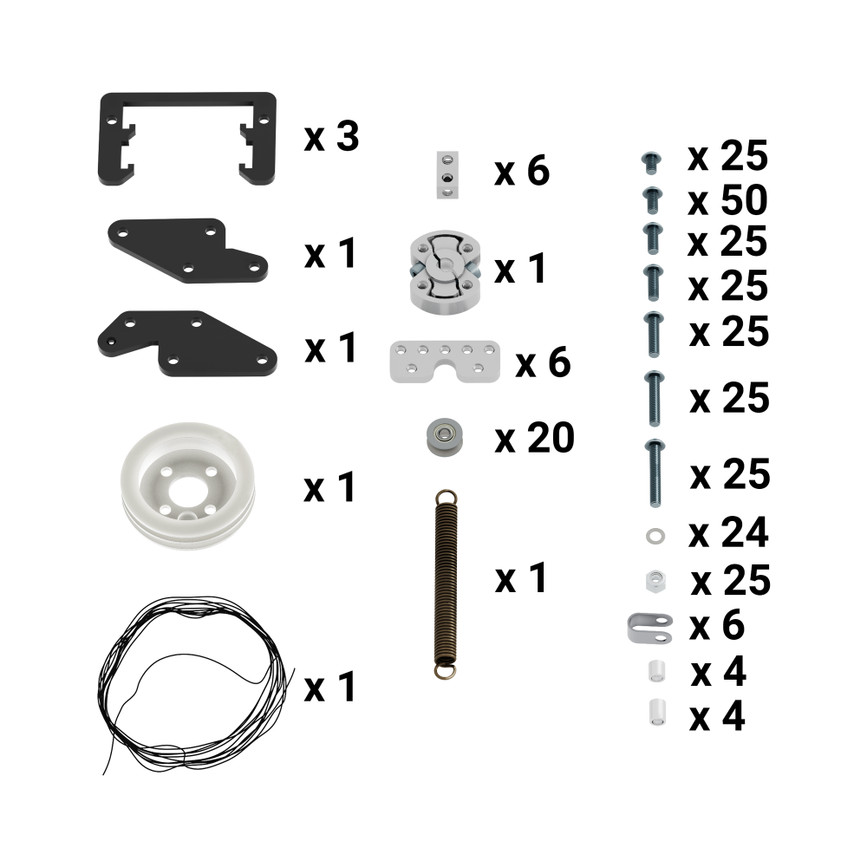

Kit Contents:

SKUQtyName
1106-0002-0016 6 1106 Series Square Beam (2 Hole, 16mm Length)
1225-0001-0001 3 1225 Series Flat Mount for V-Groove Bearings (1-1) - 2 Pack
1502-0006-0060 1 1502 Series 4mm ID Spacer (6mm OD, 6mm Length) - 4 Pack
1502-0006-0080 1 1502 Series 4mm ID Spacer (6mm OD, 8mm Length) - 4 Pack
1609-0613-0004 10 1609 Series V-Groove Bearing (4mm ID x 13mm OD, 6mm Thickness) - 2 Pack
2802-0004-0006 1 2802 Series Zinc-Plated Steel Button Head Screw (M4 x 0.7mm, 6mm Length) - 25 Pack
2802-0004-0008 2 2802 Series Zinc-Plated Steel Button Head Screw (M4 x 0.7mm, 8mm Length) - 25 Pack
2802-0004-0010 1 2802 Series Zinc-Plated Steel Button Head Screw (M4 x 0.7mm, 10mm Length) - 25 Pack
2802-0004-0012 1 2802 Series Zinc-Plated Steel Button Head Screw (M4 x 0.7mm, 12mm Length) - 25 Pack
2802-0004-0016 1 2802 Series Zinc-Plated Steel Button Head Screw (M4 x 0.7mm, 16mm Length) - 25 Pack
2802-0004-0020 1 2802 Series Zinc-Plated Steel Button Head Screw (M4 x 0.7mm, 20mm Length) - 25 Pack
2802-0004-0025 1 2802 Series Zinc-Plated Steel Button Head Screw (M4 x 0.7mm, 25mm Length) - 25 Pack
2807-0407-0250 3 2807 Series Stainless Steel Shim (4mm ID x 7mm OD, 0.25mm Thickness) - 12 Pack
2812-0004-0007 1 2812 Series Zinc-Plated Steel Nylon-Insert Locknut (M4 x 0.7mm, 7mm Hex) - 25 Pack
2914-0001-0001 3 V-Groove Bearing Shield (1-1) - 2 Pack

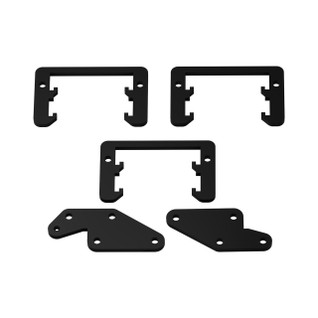

1127-0001-0001 1 Plastic Plate Kit 3210-0001-0001
3407-0016-0001 1 3407 Series Hub Mount Winch Pulley (16-1)
1309-0016-1006 1 1309 Series Sonic Hub (6mm D-Bore
2908-0075-0005 1 Synthetic Cable (Black, 0.75mm Diameter, 5M Length)
2915-0001-0001 1 Extension Spring (8mm OD, 6.8kg Max Load, 80-120mm Length)
$99.99
