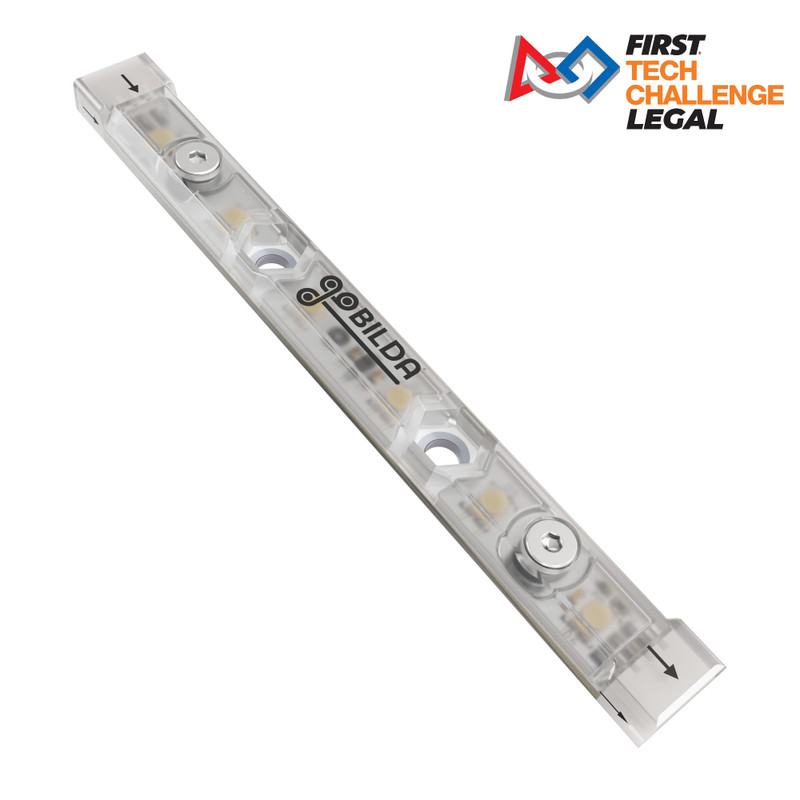

Prism RGB LED Strip (104mm Length, 6 LEDs) - 2 Pack
SKU:
Light up your robot or project with this 104mm Length RGB LED Strip! It features 6 LEDs you can command using the goBILDA® Prism RGB LED Driver to create customizable color sequences and animations. You can daisy-chain it with other Prism RGB LED Strips via its 3-Pos JST PH connectors and included 300mm length wire to create exactly the illumination your project needs.
Participating in the FIRST® Tech Challenge? You’ll be happy to know that Prism RGB LED Strips take the rigors of the FTC game field into consideration—their clear plastic is rock-solid, allowing you to rest easy while they shine according to your heart’s design on your robot’s undercarriage, sides, or wherever!
This Prism RGB LED Strip rocks thru-holes on the goBILDA® pattern that make it easy to attach to goBILDA® components like 1120 Series U-Channel and 1121 Series Low-Side U-Channel. The thru-holes also feature hex-counterbores for an easy one-tool installation.
Downloads
Specs
| Weight | 34g (including mounting hardware and wiring components) |
|---|---|
| Input Voltage Range | 5V |
| Input Connector | 3-Pos JST PH [FH-MC] |
| Output Connector | 3-Pos JST PH [FH-MC] |

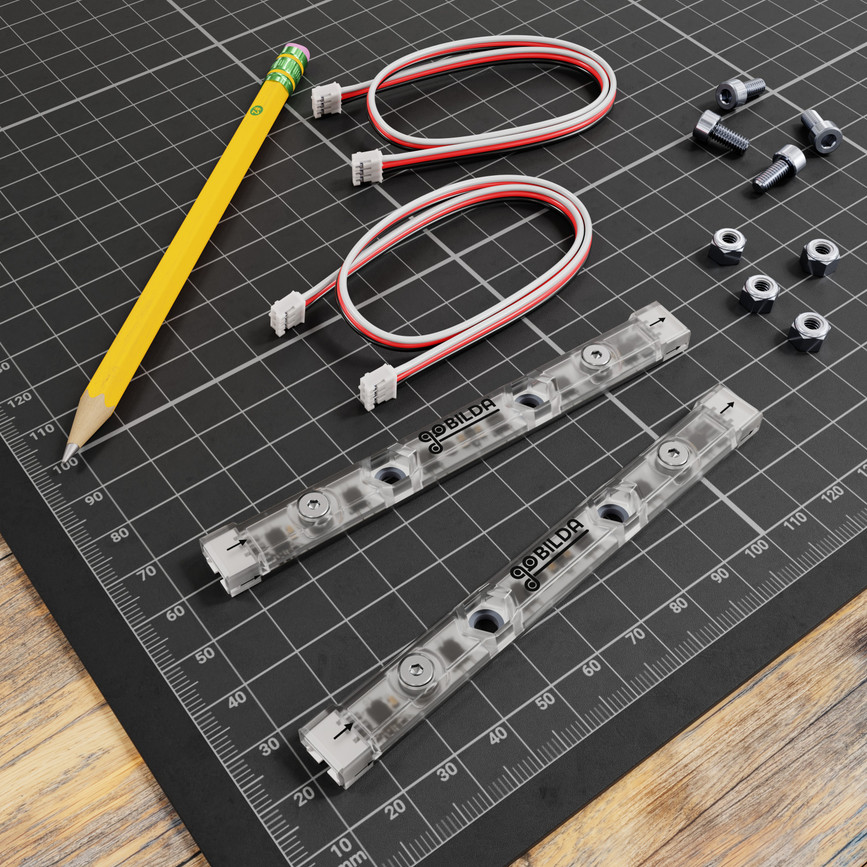

| Included Hardware | 9mm Length M4 Socket Head Screw x 4, M4 Nylock Nut x 4 |
| Included Wiring | JST PH Cable (3-Pos JST PH, MH-FC to MH-FC, 300mm Length) x2 |
| Power Draw at Max Brightness | 0.35W |
