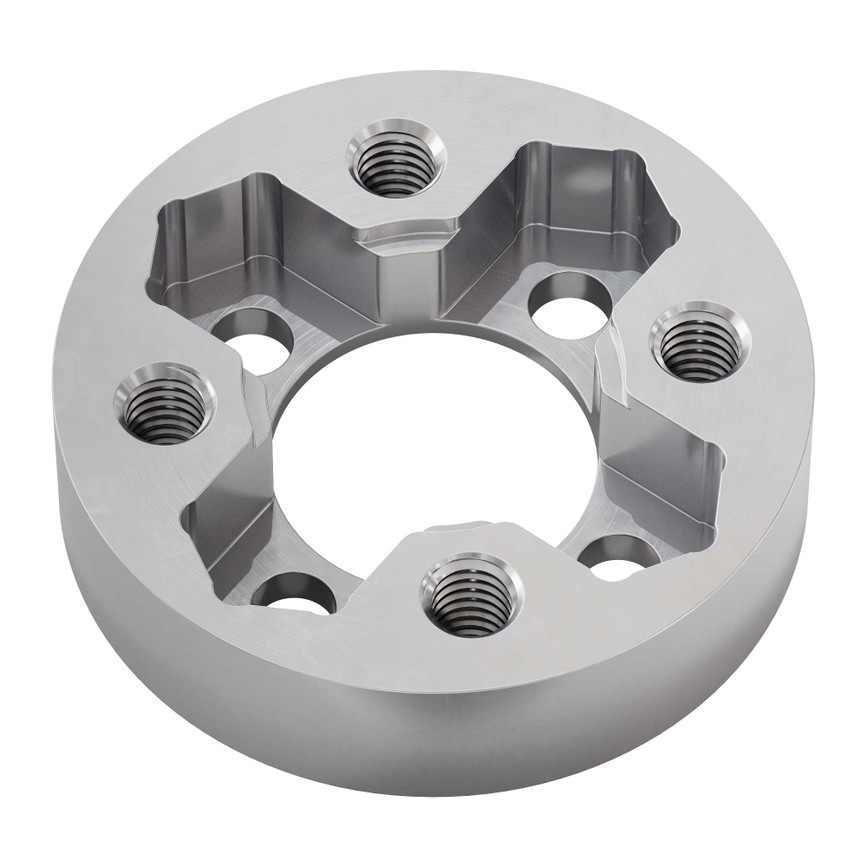

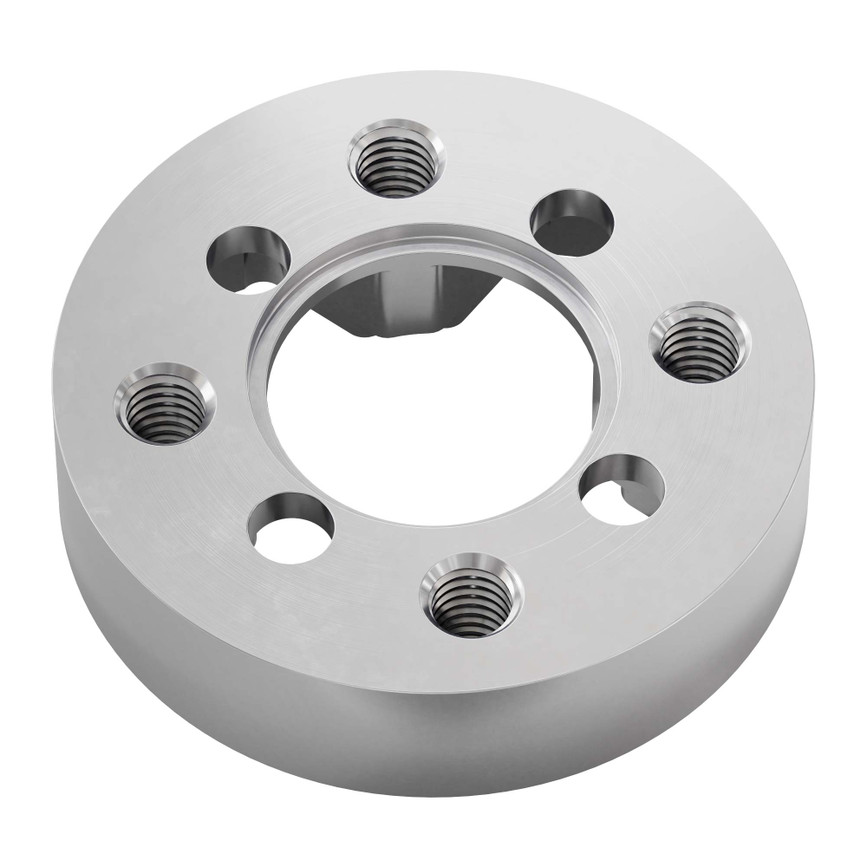

Thru-Hole Actobotics to Threaded goBILDA Pattern Adaptor (16-6)

SKU:
$5.99

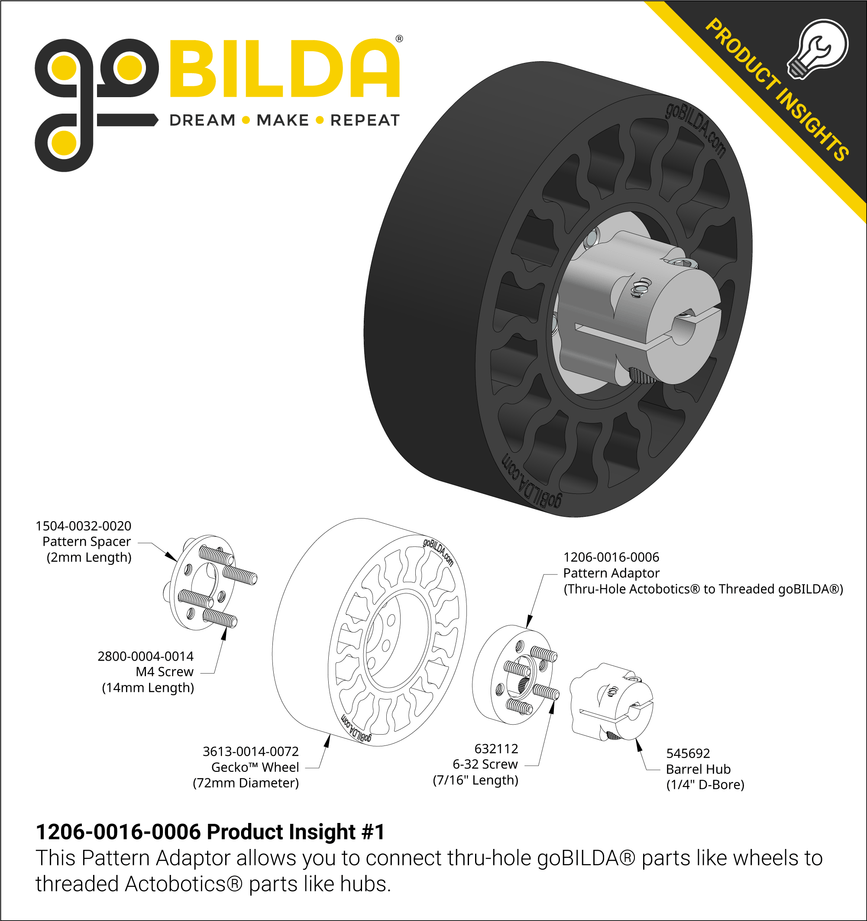

The thru-holes on this adaptor align with the 0.77" pattern of the Actobotics build-system. 6-32 screws or 6-32 locknuts (5/16” hex-size) are able to rest down in the counterbores, leaving the top surface clean and clear for the next part to fasten to. The M4 threaded holes are positioned on the 16mm grid pattern found throughout goBILDA.

As an added bonus, 1mm deep counterbores have been added to both the top and bottom of this adaptor so you can use it in various ways to hold and capture a 1611 Series flanged bearing.

Downloads

Specs

Weight 7.1g
Material Aluminum
Finish Clear Anodized
