Threaded REV to Thru-Hole goBILDA Pattern Adaptor (16-9)

SKU:
$5.99

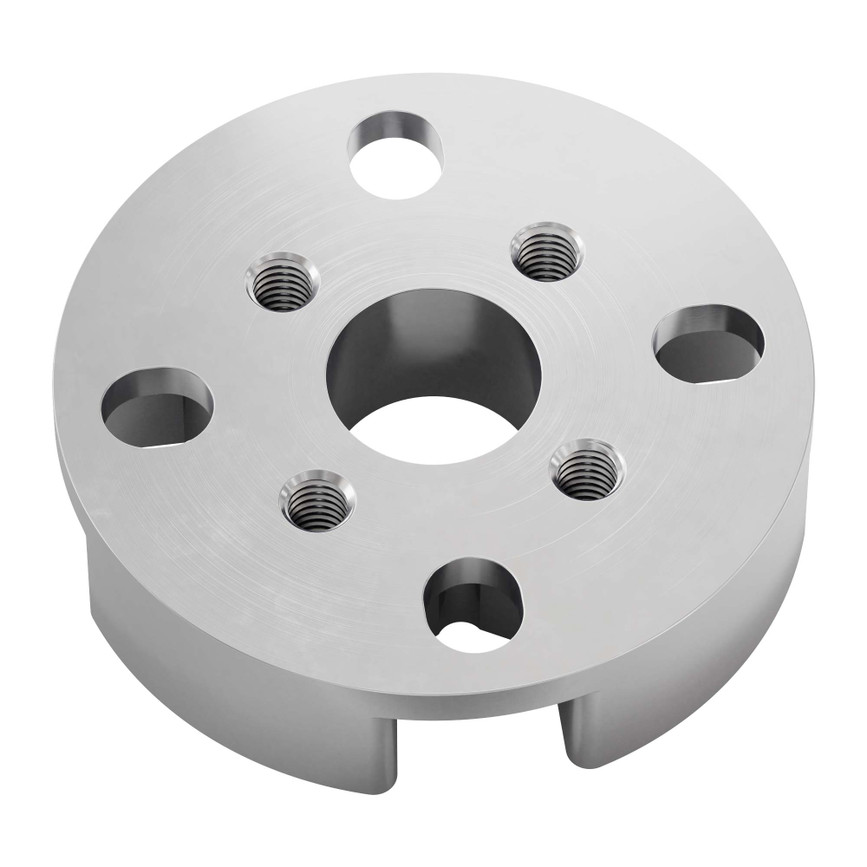

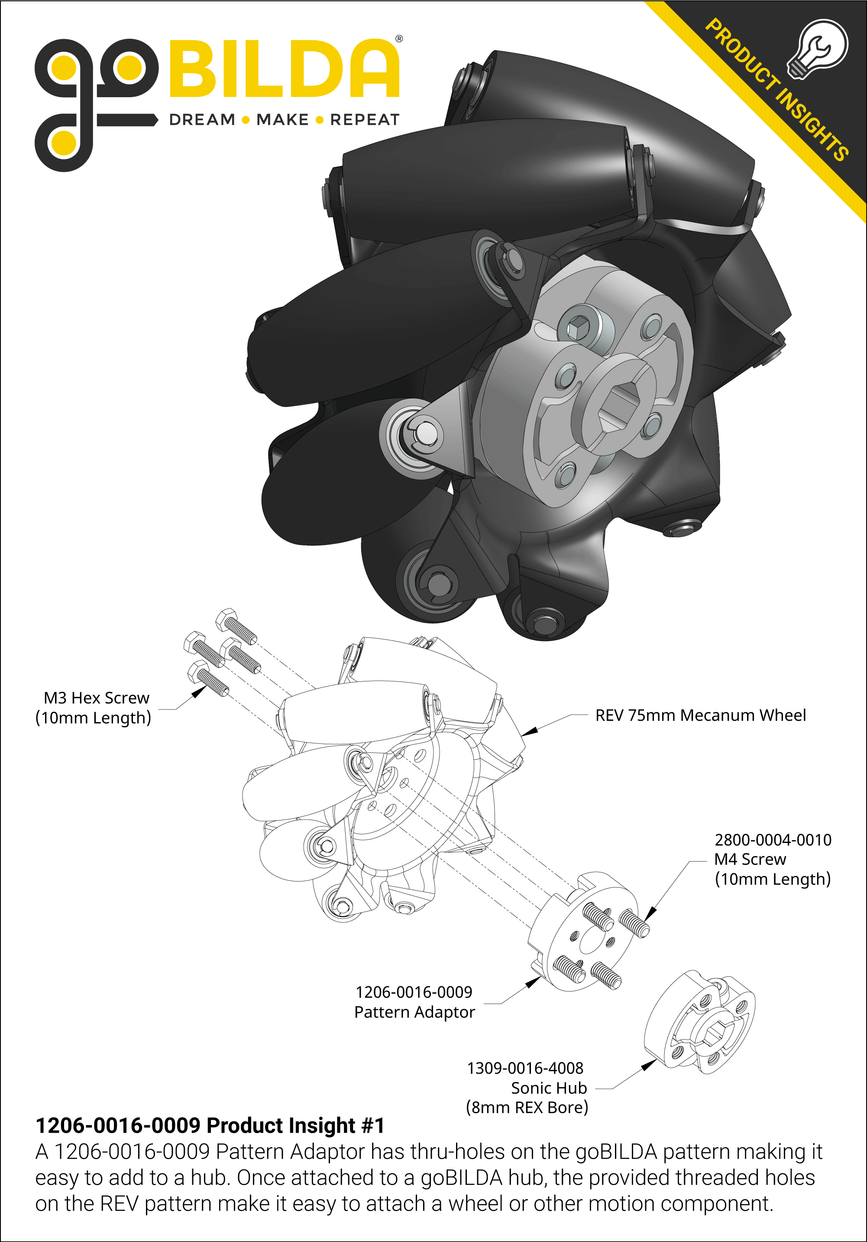

The thru-holes on this adaptor align with the 16mm pattern found on almost every goBILDA part but are slotted outward for edge-case situations where you need to align with holes spaced 24mm across the center. The counterbores allow heads of M4 socket head screws to rest below the top surface so you have a clean slate to fasten a part to.

The M3 threaded holes align with the REV pattern that measures 16mm across center. These holes allow you to fasten nearly any REV component that has thru-holes with ease.

Downloads

Specs

Weight 12g
Material Aluminum
Finish Clear Anodized
