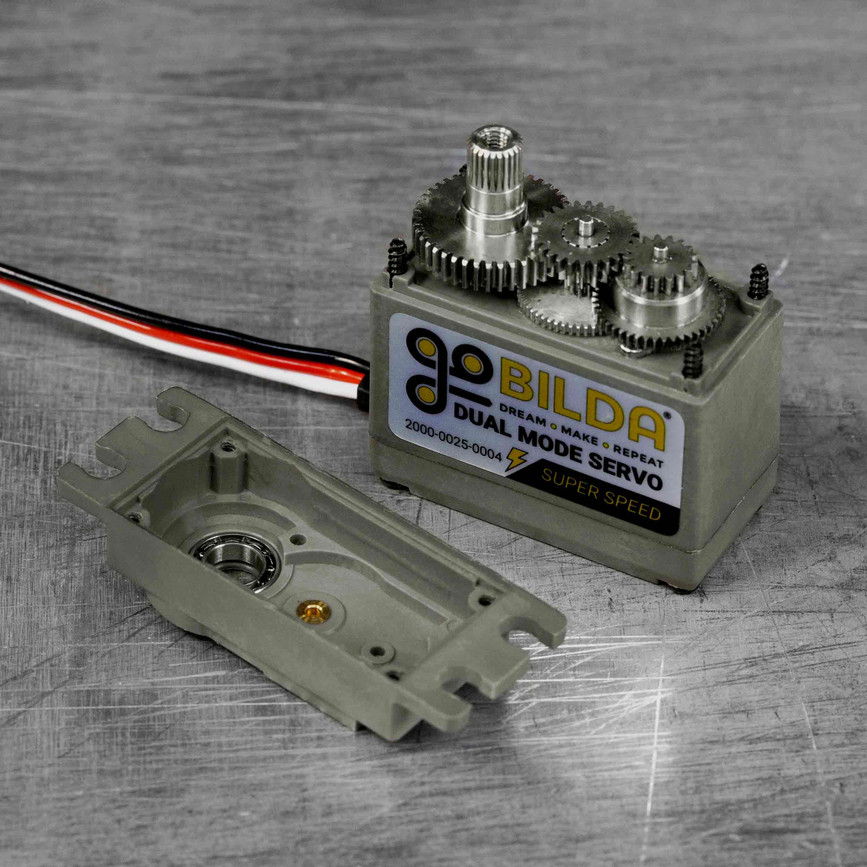

2000 Series Dual Mode Servo (25-4, Super Speed)

SKU:
$27.99

Meet the Dual Mode ‘SUPER SPEED’ Servo. This servo is essentially an even faster version of the 2000-0025-0003 ‘SPEED’ Servo, reaching speeds of up to 290RPM!

Just like the other 2000 Series servos, this servo boasts two different modes which allow it to fill a variety of roles on your robot or project. In the default mode, the servo is able to rotate 300 degrees while having positioning feedback. In this mode, the PWM signal will determine the position of the servo. Using the 3102 Series Dual Mode Servo Programmer (1-1) the servo can be toggled into continuous rotation mode. In this mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

Downloads

Specs

Weight 58g
Gear Ratio 67:1
Output Shaft Style 25 Tooth Spline
Voltage Range 4.8V ~ 7.4V
No-Load Speed (4.8V) 0.055 sec/60° (180RPM)
No-Load Speed (6.0V) 0.043 sec/60° (230RPM)
No-Load Speed (7.4V) 0.035 sec/60° (290RPM)
Stall Torque (4.8V) 4.0 kg.cm (55 oz-in)
Stall Torque (6.0V) 4.7 kg.cm (65 oz-in)
Stall Torque (7.4V) 5.4 kg.cm (75 oz-in)
No-Load Current (4.8V) 190mA
No-Load Current (6.0V) 200mA
No-Load Current (7.4V) 230mA
Stall Current (4.8V) 2000mA
Stall Current (6.0V) 2500mA
Stall Current (7.4V) 3000mA
Max PWM Range (Default) 500 - 2500μsec
Max PWM Range (Continuous) 1000 - 2000μsec
Travel per µsec (Default) 0.15°/μsec
Max Travel (Default) 300°
Pulse Amplitude 3-5V
Direction Clockwise w/ Increasing PWM Signal
Deadband Width 4μsec
Motor Type Brushed DC
Feedback Style 5KΩ Potentiometer
Output Shaft Support Dual Ball Bearing
Gear Material Steel
Wire Length 300mm
Wire Gauge 22 AWG
Connector Type 3-Pos TJC8 Servo Connector [MH-FC]
