2303 Series Steel, MOD 0.8 Pinion Gear (8mm REX™ Bore, 20 Tooth)
SKU:

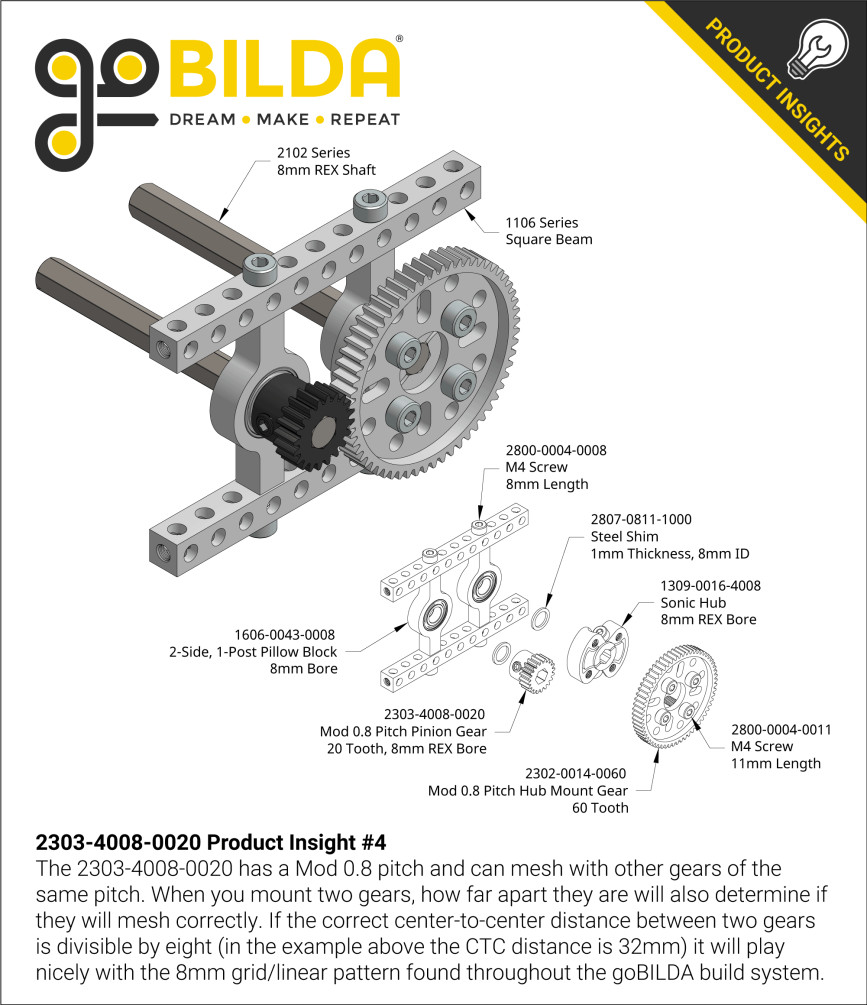

This 20 tooth 8mm REX™ bore pinion gear is ready to rip! The bore perfectly matches our 8mm REX™ shafting to create a positive drive. While little work is left for the set screws, we put two of them in for good measure. This particular gear is most commonly mated to a 100 tooth hub gear in order to create a 5:1 ratio however if your build provides the freedom to adjust the spacing between your gears, it’s able to mesh to any MOD 0.8 gear that suits your fancy.
SET-SCREW WITH THREAD-LOCKING NYLON PATCH
The set-screw included with this product features a nylon patch: a blue dollop of thread-locking magic that ensures extraordinary resistance to loosening from vibration!
Downloads
Specs
| Weight | 14g |
|---|---|
| Material | Steel |
| Finish | Black Zinc-Plated |
| Tooth Count | 20 |
| Gear Pitch | MOD 0.8 |
| Pressure Angle | 20 Degree |
