3.5mm Bullet Lead (MH-FC, 300mm Length)

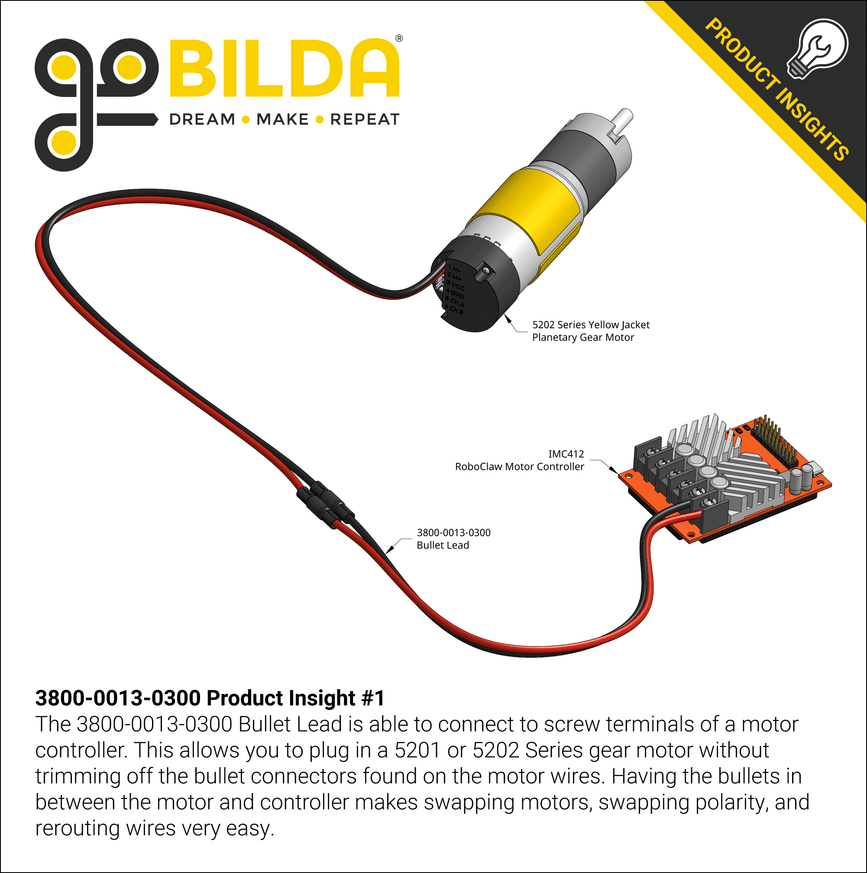

This bullet lead consists of 300mm length, 16AWG, bonded wire that is terminated in 3.5mm (MH-FC) bullet connectors on one end and bare wires on the other.  The bare wires are great for going into screw terminals of a motor controller, soldering into thru-holes of a PCB or for soldering up a custom wiring harness.  The connectors on this lead are directly compatible with our 5201 Series and 5202 Series gear motors.

Tech Tip

MH-FC = Male Housing, Female Contacts


Weight 15g
Wire Gauge 16AWG
Jacket Material PVC
Wire Material Stranded Copper
