3606 Series Mecanum Wheel (Right Slant, Bearing Supported Rollers, 100mm Diameter)

SKU:

The Right Slant Mecanum is the same wheel you’ll find in the goBILDA Mecanum Wheel Set (which comes with two Left Slant Wheels and two Right Slant Wheels), but sold as a single wheel for whatever your needs demand. Since like-wheels are positioned catty-corner from one-another on a conventional mecanum chassis we decided to stray from calling this a left wheel or a right wheel. We’ve named it based on the direction the leading edge of the roller faces, when installed and looking down on the chassis.

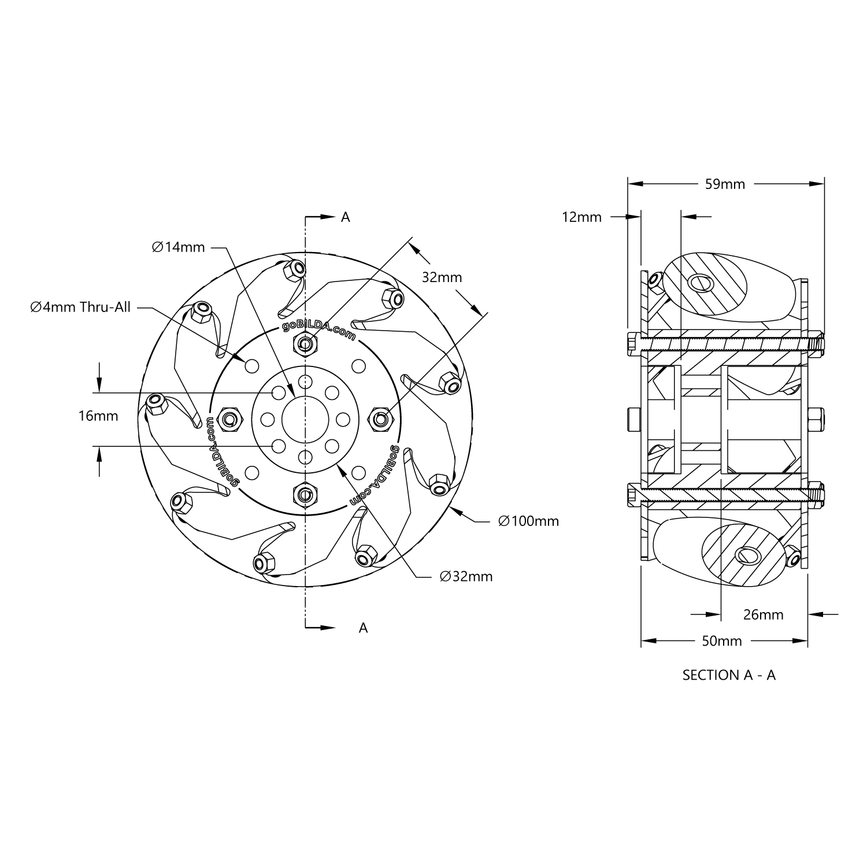

Just as the wheels in the full set, this wheel has rollers which are supported by ball-bearings so that they rotate with ease. The black anodized aluminum side plates sandwich a beefy plastic wheel-center. The wheel-center possesses the goBILDA 16mm bolt pattern and 14mm center hole. This makes it easy to mount to a hubgoTUBE or component of your choice. To provide mounting options, the wheel-center is offset so you can flip the wheel to change your robot’s track-width. The aluminum plates have a center bore of 32mm so that when the wheels are mounted on a 32mm component, such as goTUBE, the aluminum provides additional lateral support. The wheel is assembled with M4 hardware on the goBILDA 32mm pattern, leaving 4 holes unused on the 32mm pattern.

Downloads

Specs

Weight 315g
$34.99

Currently Sold Out
