Hitec Linear Servo (30mm Stroke, 16.1mm/sec, 5.2kg Thrust)
SKU:
Servos are popularly known for rotational motion. However, linear servos like this one provide PWM-operated position-control with linear motion.

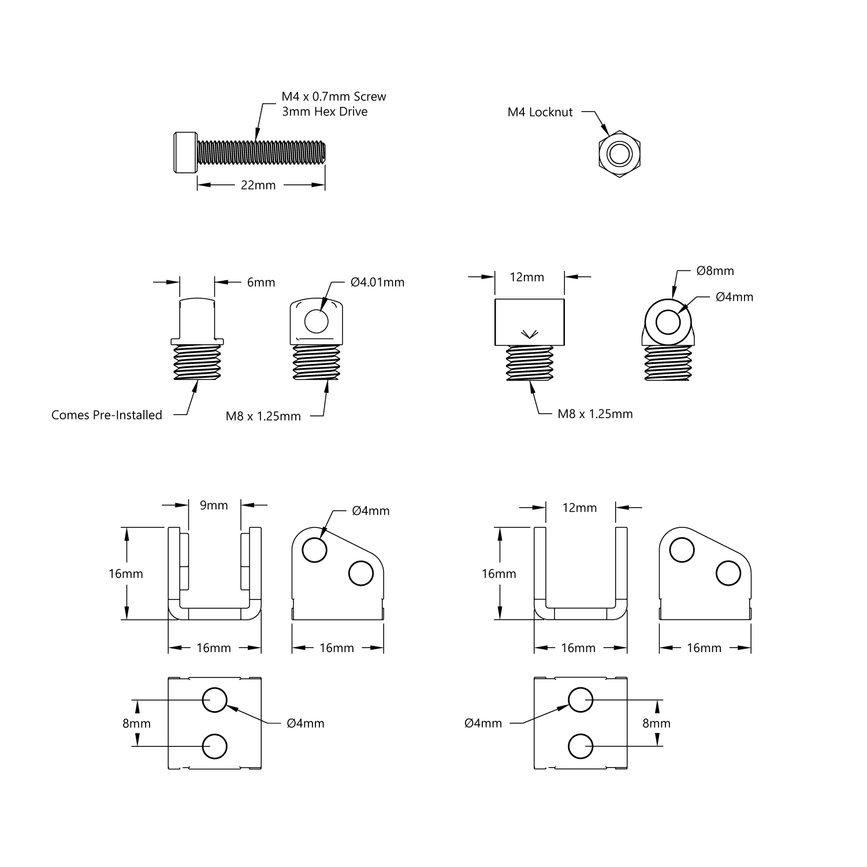

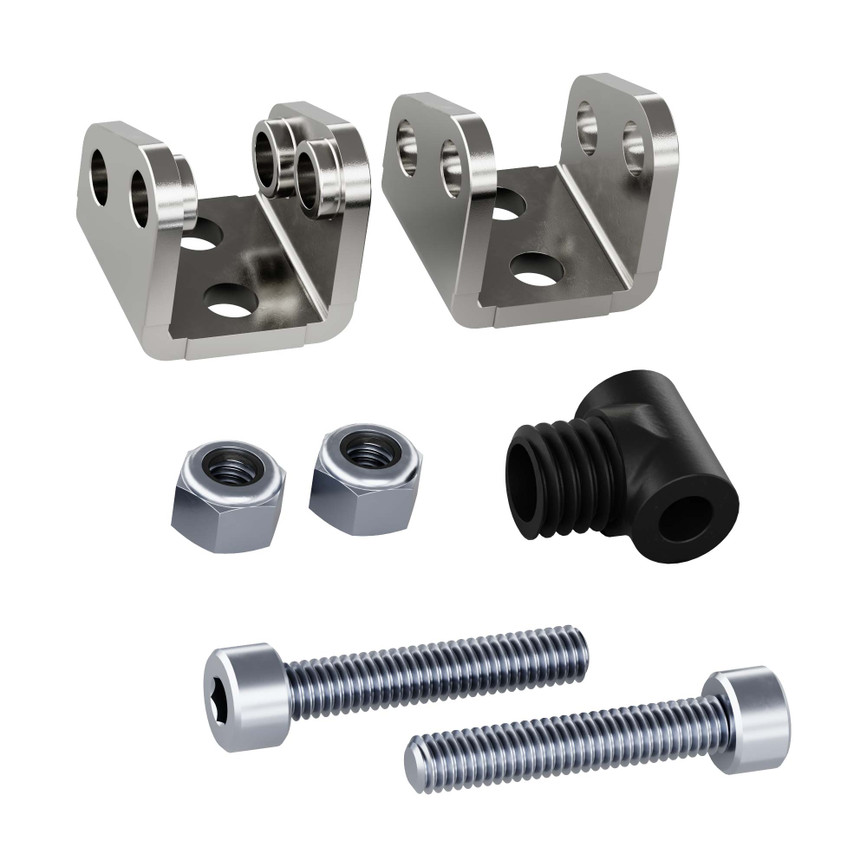

This Hitec HLS12 Series Linear Servo provides 30mm of linear travel—the position of which is controlled via PWM. That’s why it’s plug-and-play with your favorite servo controllers, as well as many other popular R/C solutions! It also rocks a compact form factor with a suite of attachment options via included brackets and mounting hardware.

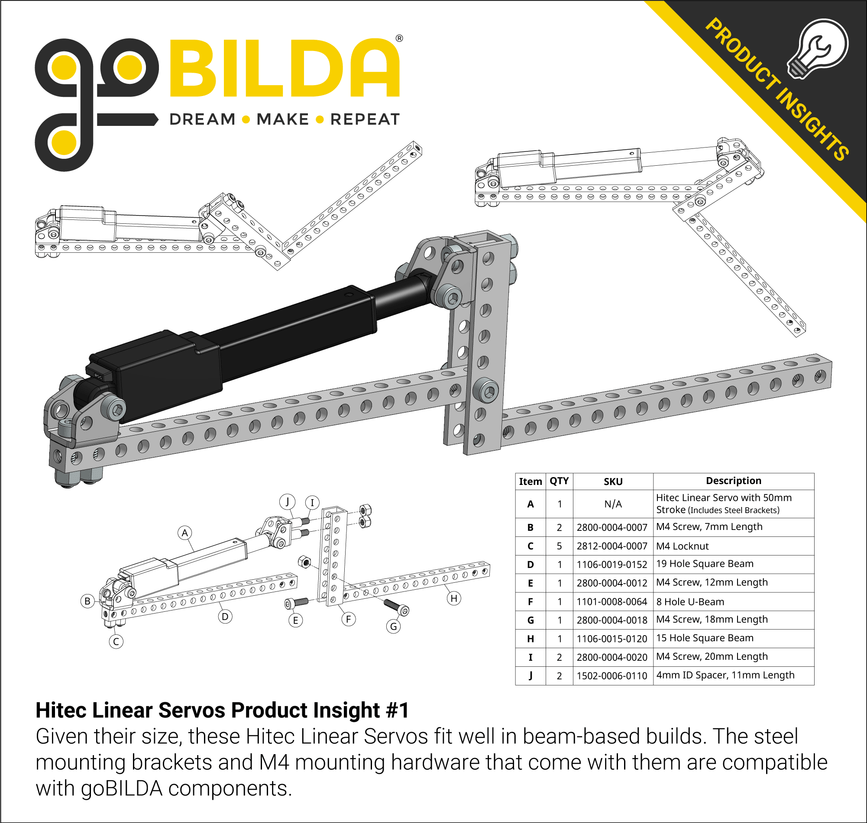

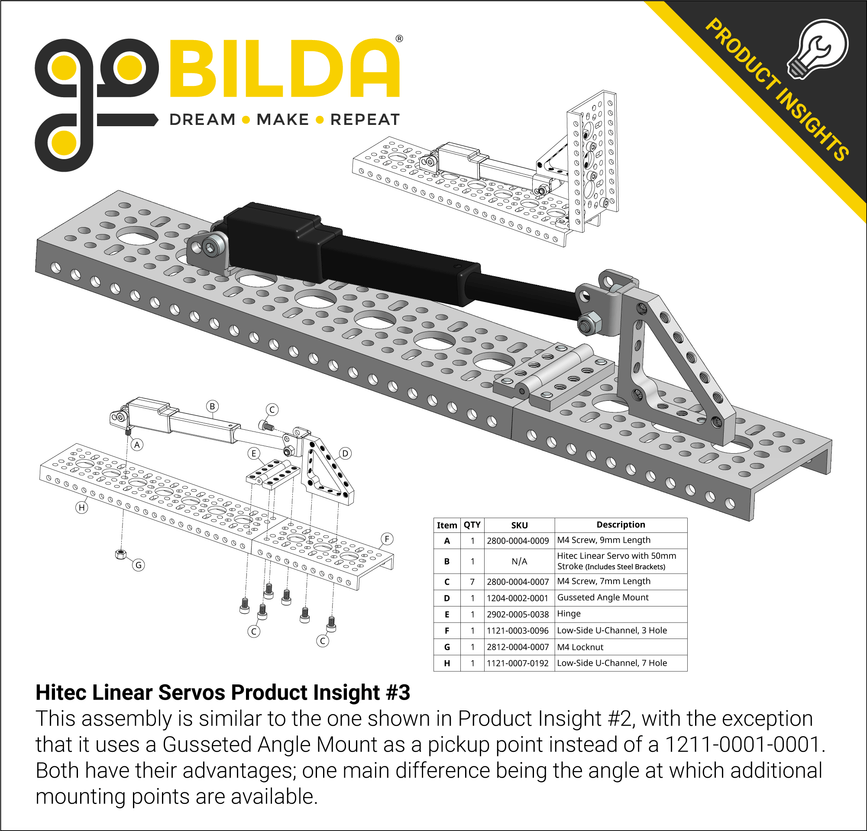

This linear servo is perfect for smaller-scale motion applications that can fit within the design requirements of things like animatronics. More generally, it offers the same proficiency of all linear servos in providing versatile options for levers, lifts, and joint articulation in all kinds of projects!
Downloads
Specs
| Weight | 33g |
|---|---|
| Stroke | 30mm | 1.2" |
| Speed (No Load) @ 6.0VDC | 13.0mm/sec |
| Speed (No Load) @ 7.4VDC | 16.1mm/sec | 0.6"/sec |
| Thrust (Stall) @ 6.0VDC | 4.2kg | 9.3lb |
| Thrust (Stall) @ 7.4VDC | 5.2kg | 11.5lb |
| Gear Ratio | 100:1 |
| Voltage Range | 4.8 - 7.4VDC |
| Max PWM Range | 1050-1950μsec |
| Operating Temperature | -10°c ~ +50°c |
| Motor Type | Brushed DC |
| Feedback Style | Digital |
| Wire Length | 160mm |
| Connector Type | 3-Pos TJC8 Servo Connector [MH-FC] |
| Current Drain (Stall) @ 6.0VDC | 500 mA |
| Current Drain (Stall) @ 7.4VDC | 620 mA |
| Manufacturer Part Number | 41001 |
