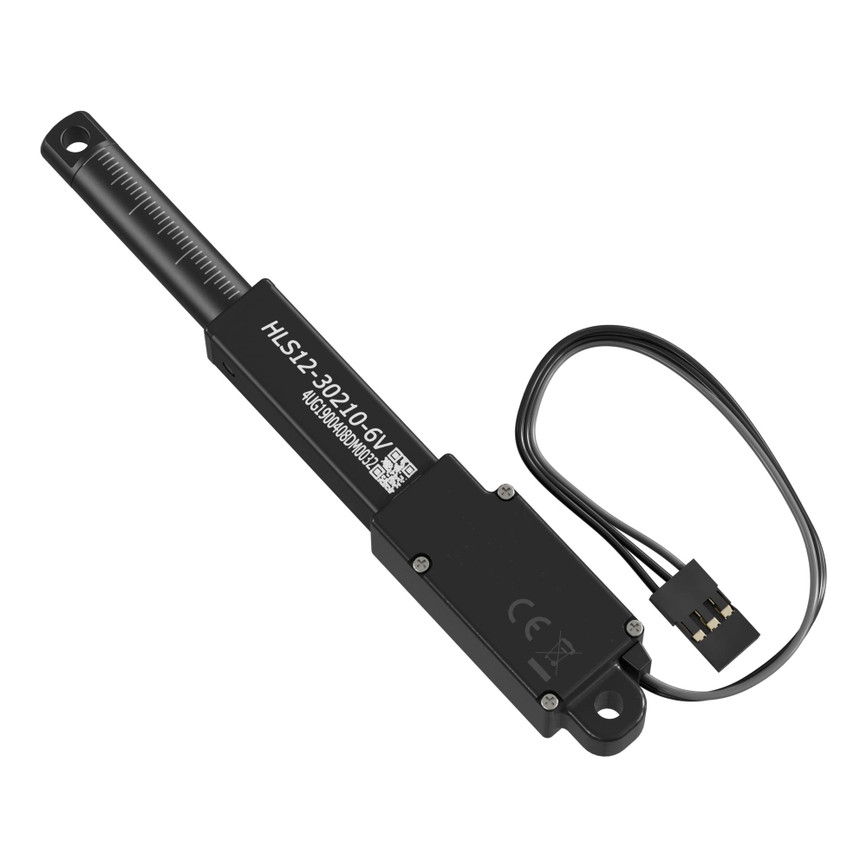

Hitec Linear Servo (30mm Stroke, 7.5mm/sec, 12.4kg Thrust)



Weight 33g
Stroke 30mm | 1.2"
Speed (No Load) @ 6.0VDC 6.1mm/sec | 0.2"/sec
Speed (No Load) @ 7.4VDC 7.5mm/sec | 0.3"/sec
Thrust (Stall) @ 6.0VDC 10.0kg | 22.0lb
Thrust (Stall) @ 7.4VDC 12.4kg | 27.3lb
Gear Ratio 210:1
Voltage Range 4.8 - 7.4VDC
Max PWM Range 900-2100μsec
Operating Temperature -10°c ~ +50°c
Motor Type Brushed DC
Feedback Style Digital
Wire Length 160mm
Connector Type 3-Pos TJC8 Servo Connector [MH-FC]
Current Drain (Stall) @ 6.0VDC 500 mA
Current Drain (Stall) @ 7.4VDC 620 mA
Manufacturer Part Number 41005
