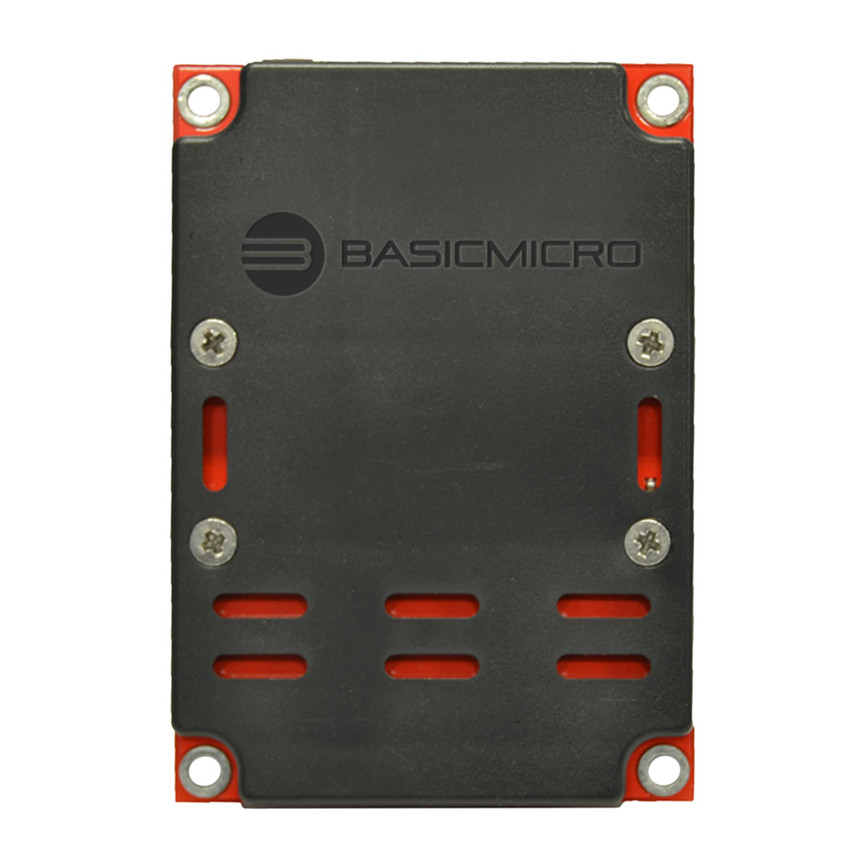

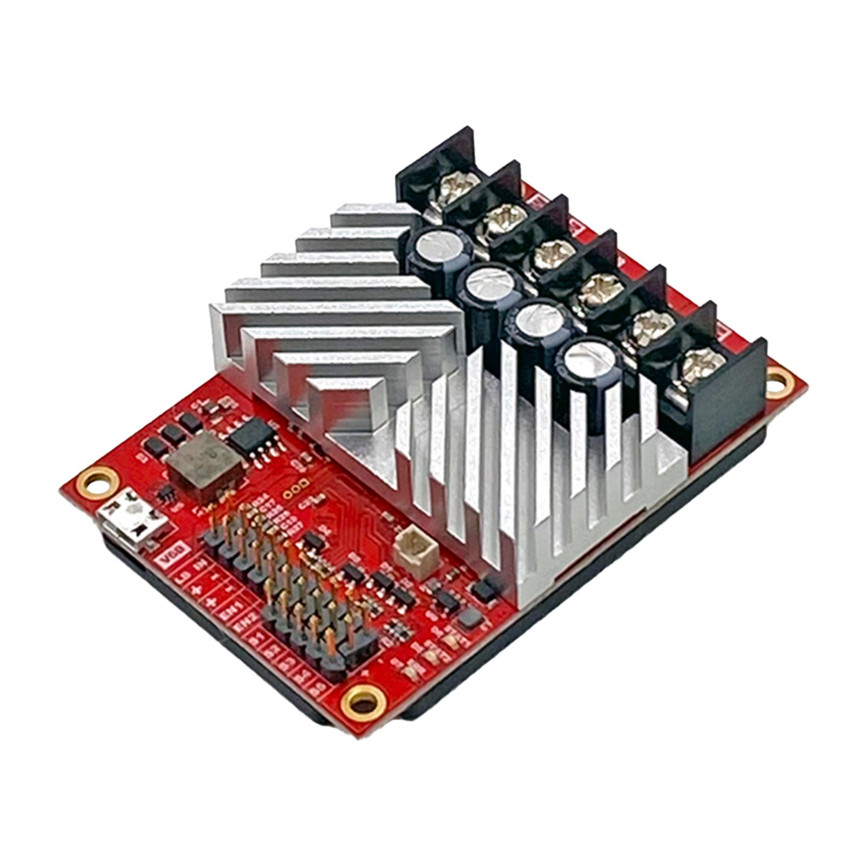

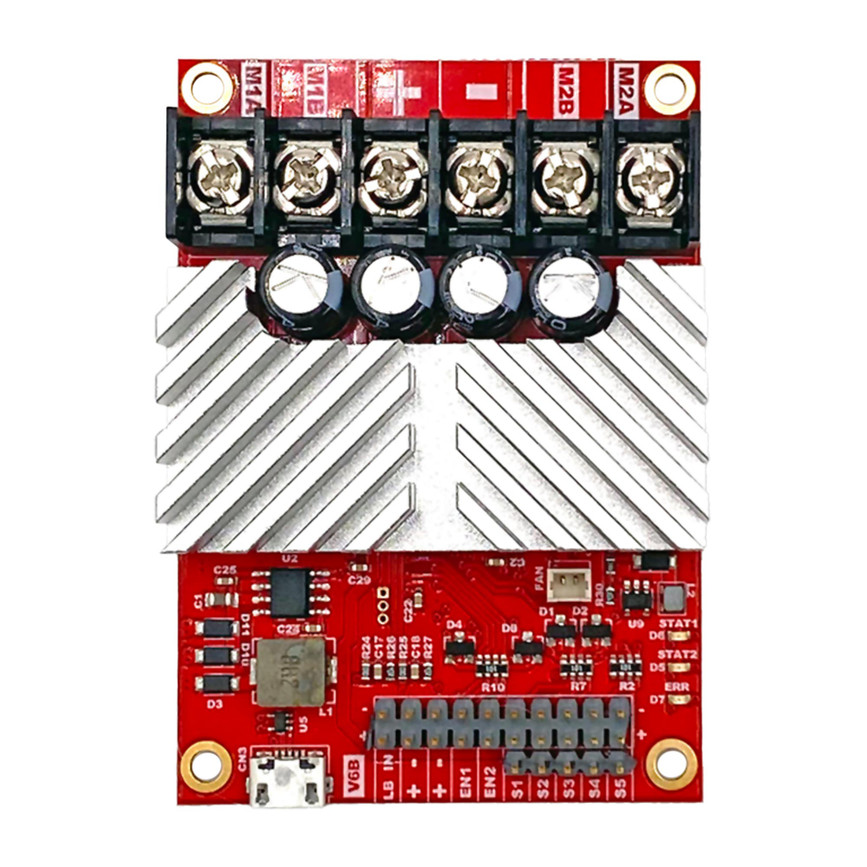

RoboClaw 2x30A Motor Controller


The Roboclaw 2x30A motor controller by Ion Motion Control can supply two brushed DC motors with 30 Amps continuous and up to 60 Amps peak. With its multi mode interface it can be controlled from USB, RC radio, serial devices, analog and or microcontrollers such as an Arduino or Raspberry Pi. Dual quadrature encoders with up to 19.6 million pulses per second are supported. In addition, a wide range of sensor inputs including potentiometers and absolute encoders are supported. Roboclaw's close loop functionality creates absolute control over speed, velocity and direction regardless of loading changes. At the heart of Roboclaw is a high performance motion control intelligence which achieves a higher precision of control while providing better motor performance in open or closed loop modes. With Roboclaw's synchronous regenerative capabilities it will charge a supply battery during slow down or breaking action. With it's advanced circuitry it can also change direction during full throttle without damage! Roboclaw also incorporates a lithium cutoff mode protecting batteries from damage.


Bridge Channels Yes
3.3V Safe Outputs Yes
5V Tolerant Inputs Yes
Encoder Auto Tune Yes
Thermal Protection Yes
Current Sense Yes
User Selectable Peak Current Yes
Battery Protection Yes
Regenerative Braking Yes
Over Voltage Protection Yes
Under Voltage Protection Yes
Self Diagnostics Yes
Position Control Mode Yes
Velocity Control Mode Yes
Control Methods Serial, RC or Analog Control

Tech Tips:


Weight 68g
Motor Channels 2
Max Continuous Current per Channel 30A
Max Peak Current per Channel 60A
Bridged Channels Peak Current 120A
Bridged Channels Continuous Current 60A
Max Voltage 34VDC
BEC 5VDC @ 3Amps
Motor Compatibility Brushed DC
Encoder Compatibility Relative and Absolute
Motor Direction Bidirectional
