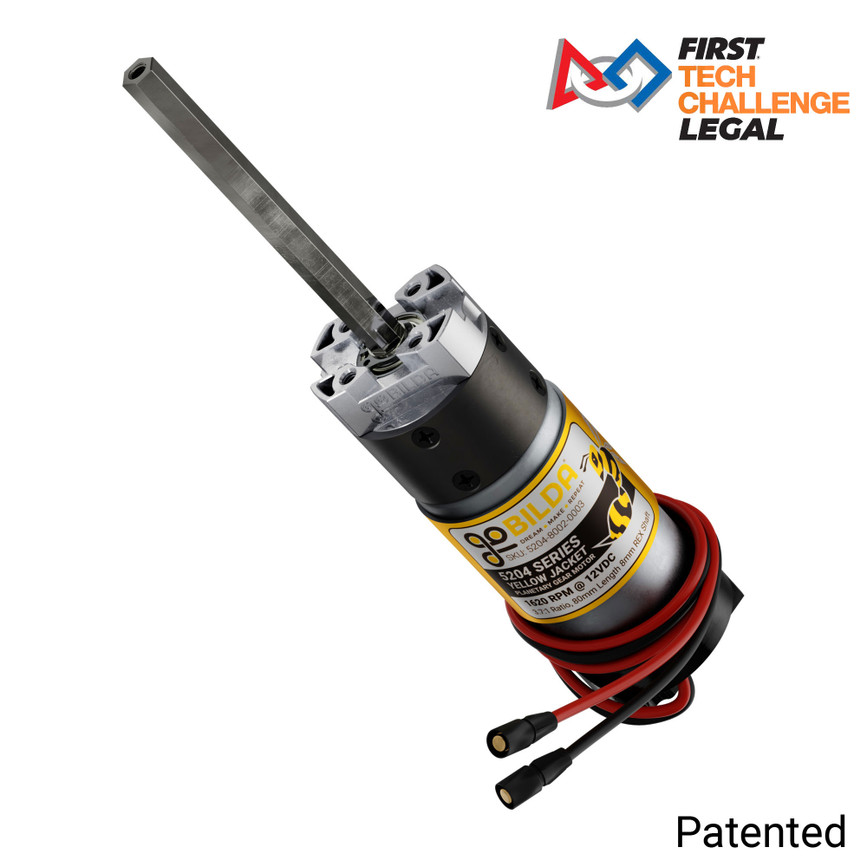

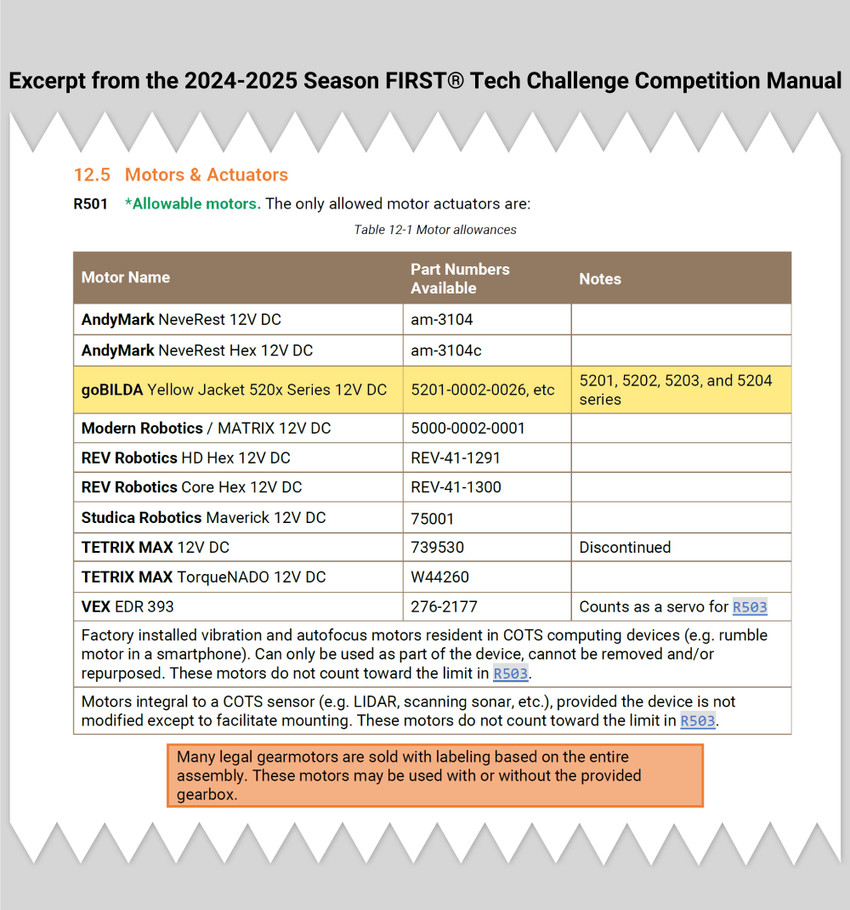

5204 Series Yellow Jacket Planetary Gear Motor (3.7:1 Ratio, 80mm Length 8mm REX™ Shaft, 1620 RPM, 3.3 - 5V Encoder)



Motor Size RS-555
Motor Type Brushed DC
Nominal Voltage 12VDC

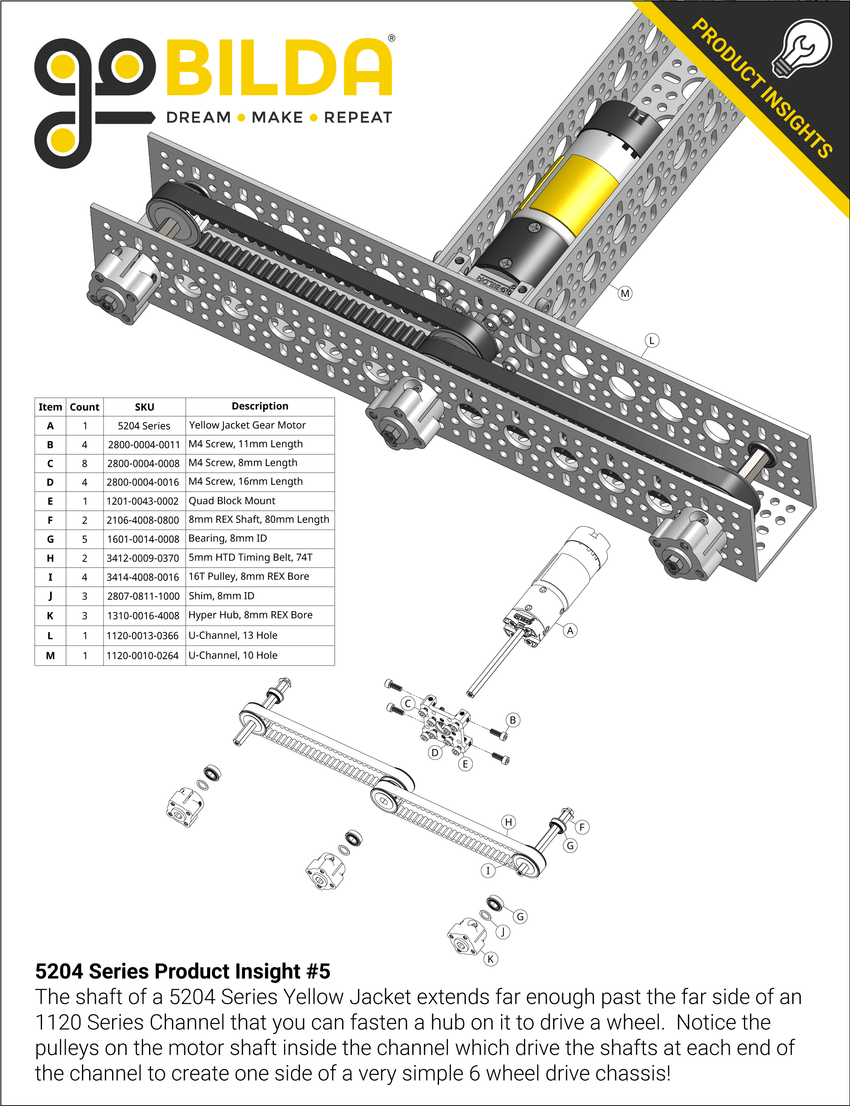

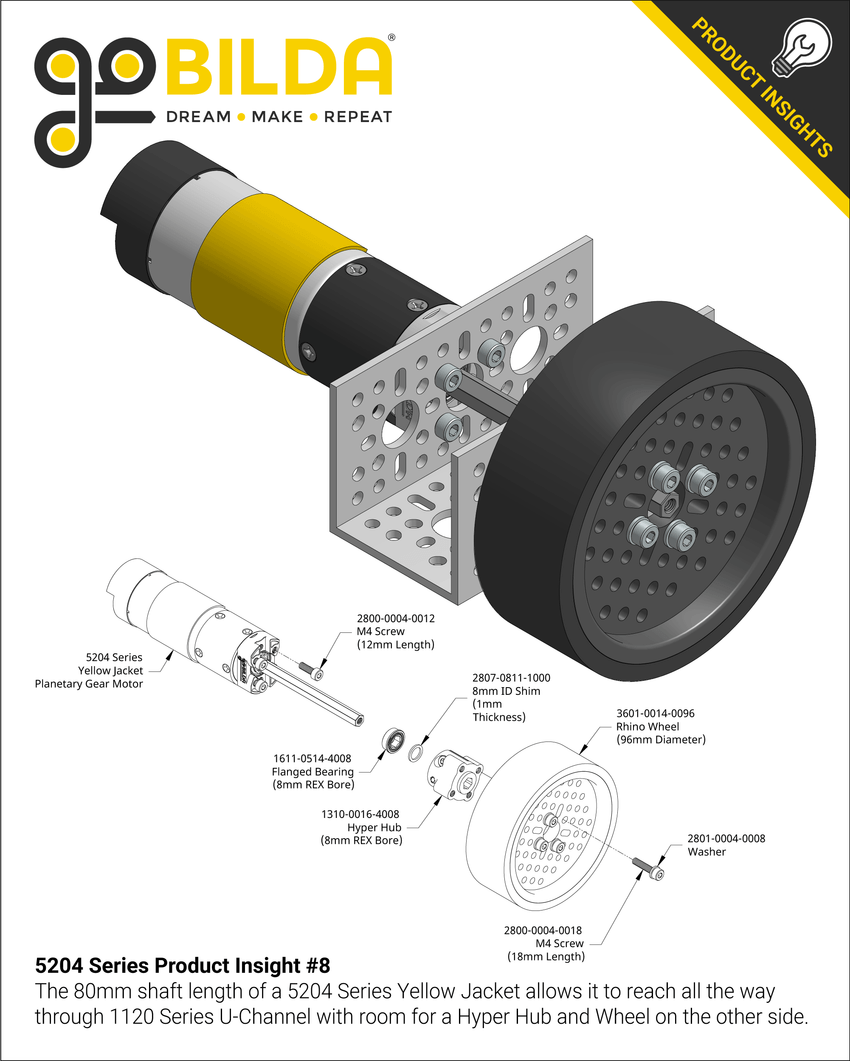

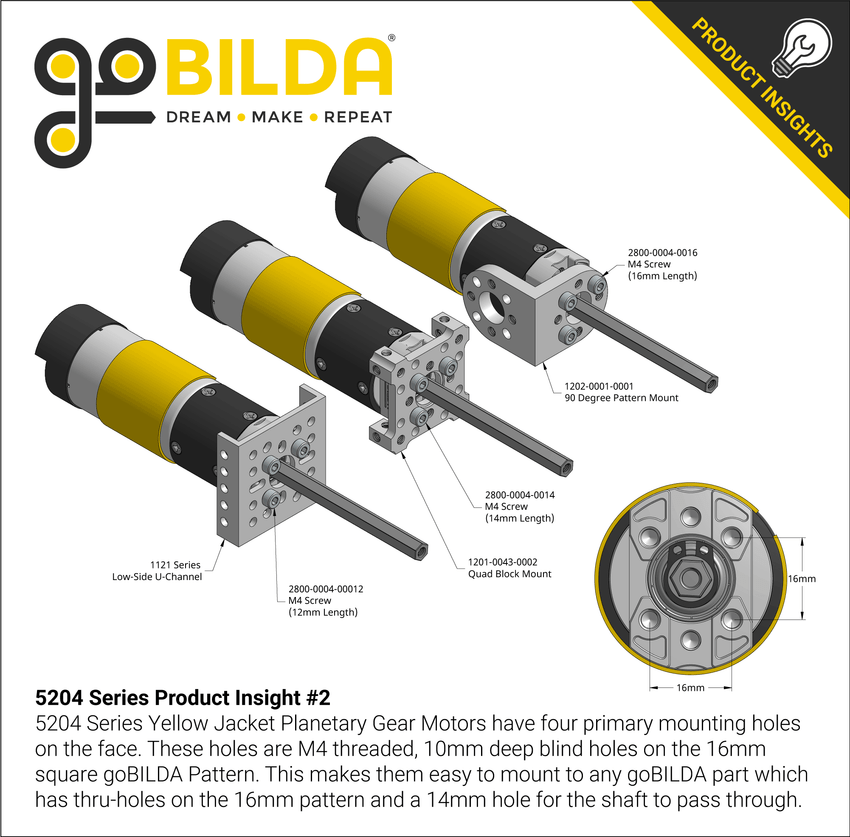

Output Shaft 8mm REX™, 80mm Length
Gearbox Style Planetary
Gear Ratio 3.7:1
Gear Ratio Formula (1+(46/17))
Gear Material Steel
No-Load Speed @ 12VDC 1,620 RPM
No-Load Current @12VDC 0.25A
Stall Current @12VDC 9.2A
Stall Torque @12VDC 5.4 kg.cm (75.8 oz-in)
Wire Length 470mm (including connectors)
Wire Gauge 18AWG
Motor Connector Type 3.5mm FH-MC Bullet Connectors

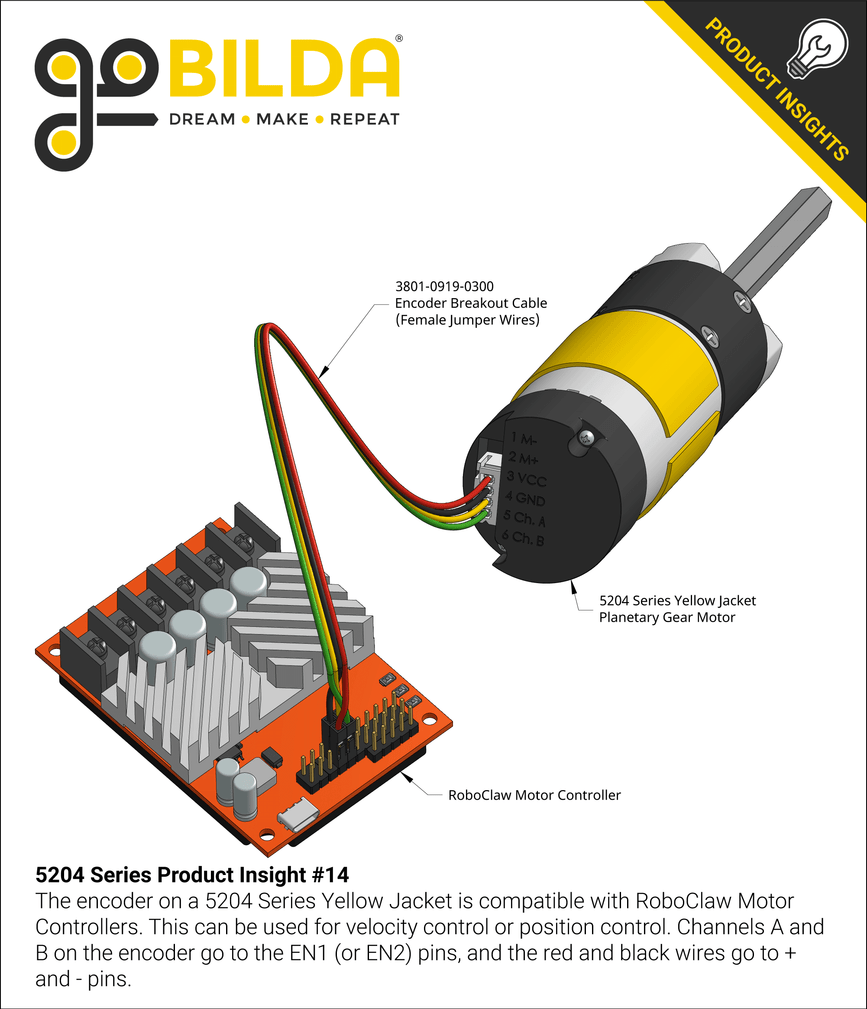

Encoder Connector Type 4-Pos JST XH [FH-MC]

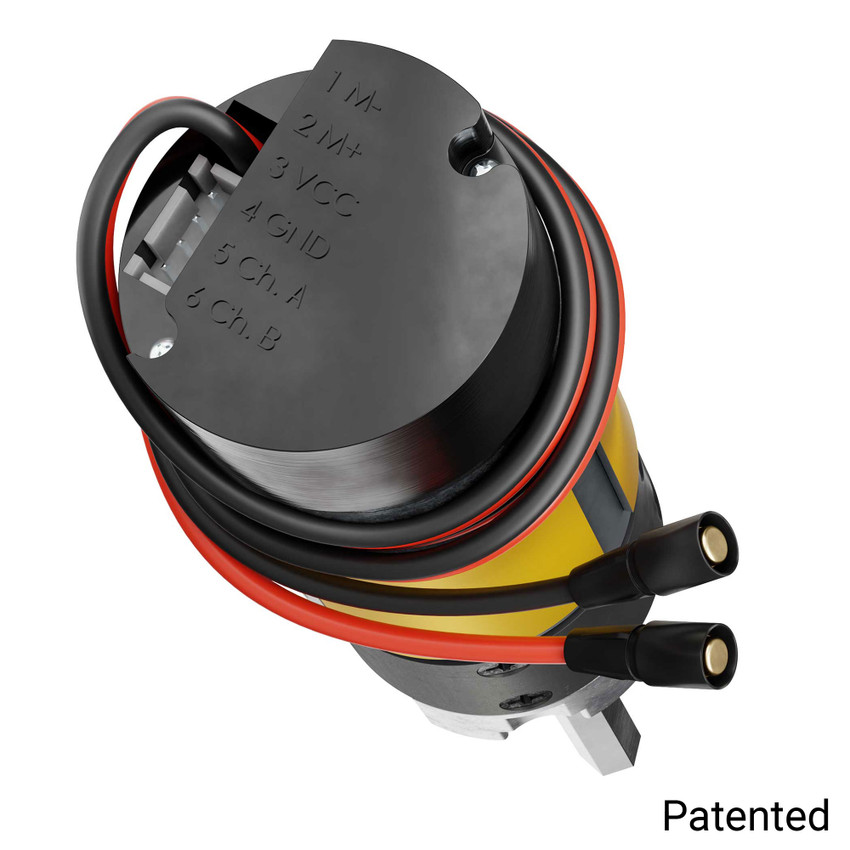

Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)
Encoder Voltage Range 3.3 - 5VDC
Encoder Resolution 103.8 PPR at the Output Shaft
Encoder Resolution Formula ((1+(46/17)) * 28)
Weight 411g
IP Patented
