Master FTC Kit (8mm REX Shaft, 2021-2022 Season)

SKU:
$773.32

The FTC kit is comprised of a massive amount of individual pieces with a retail value of over $1,557! But FTC Team budgets are real and we at goBILDA remember all too well when ideas came quicker than the funds to carry them out. For that reason, we've discounted the kit to $579.99 for FTC teams so click here and apply for your discount today!

Why buy this FTC Master Kit?

  • Ball Bearing Based
    Because goBILDA is ball bearing based, your robot will have less friction and more efficiency.

  • More Parts, Less Money
    No need to sacrifice quality for quantity.  Our steep team discounts get you in the game.

  • Better Gear Motors
    Our Yellow Jacket Planetary Gear Motors produce tremendous torque.

  • Build it Your Way
    Mix and match pattern based Channel with slide-and-lock goRAIL to get the best of both worlds.

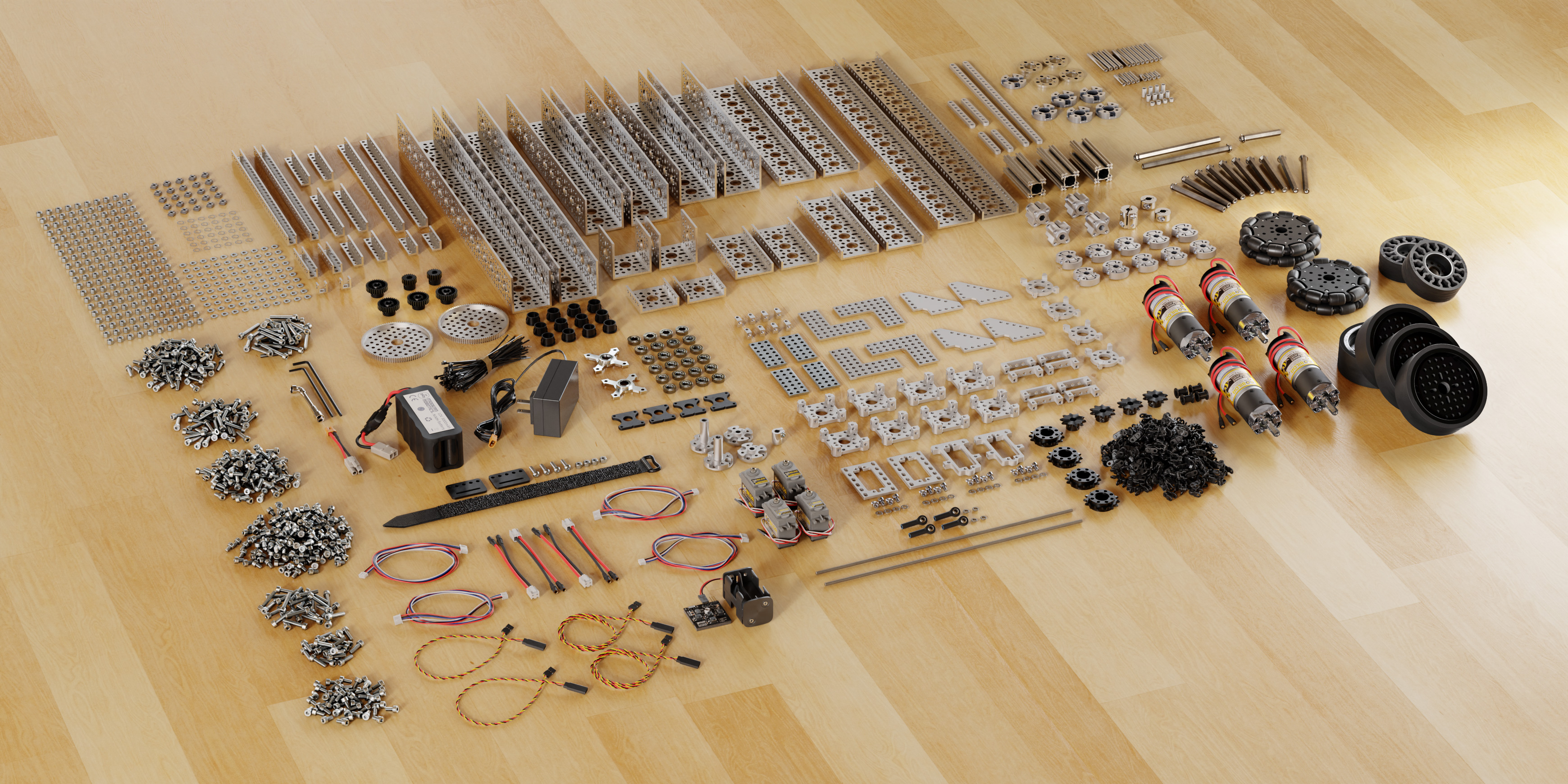

This Kit Includes:

Motors:


Qty: 4 5203 Series Yellow Jacket Planetary Gear Motor (19.2:1 Ratio, 312 RPM, 3.3 - 5V Encoder) SKU: 5203-2402-0019 x 4

Motor Wiring:


Qty: 4 2-Pos JST VH [MH-FC] to 3.5mm Bullet [MH-FC] Adaptor (100mm Length) SKU: 3801-0613-0100 x 4
Qty: 4 Encoder Cable, 600mm Length (4-Pos JST PH [MH-FC] to 4-Pos JST XH [MH-FC]) SKU: 3801-0709-0600 x 4

Servos:


Qty: 2 2000 Series Dual Mode Servo (25-2, Torque) SKU: 2000-0025-0002 x 2
Qty: 2 2000 Series Dual Mode Servo (25-3, Speed) SKU: 2000-0025-0003 x 2
Qty: 1 Servo Programmer for 2000 Series Dual Mode Servo SKU: 3102-0001-0001 x 1

Servo Mounts:


Qty: 2 ServoBlock™ (Standard Size, 25 Tooth Spline, Hub Shaft) SKU: 3202-0001-2501 x 2
Qty: 2 1802 Series Servo Frame (43mm Width, for Standard Size Servos) SKU: 1802-0043-0001 x 2

Servo Wiring:


Qty: 2 3-Pos TJC8 Servo Extension (MH-FC to FH-MC, 300mm Length) SKU: 3802-1718-0300 x 2
Qty: 2 3-Pos TJC8 Servo Extension (MH-FC to FH-MC, 600mm Length) SKU: 3802-1718-0600 x 2

Servo Attachments:


Qty: 2 1908 Series Servo Hub (25 Tooth Spline, 32mm Diameter) SKU: 1908-0025-0032 x 2
Qty: 1 4001 Series Clamping Servo to Shaft Coupler (25 Tooth Spline to 8mm REX Bore) SKU: 4001-0025-4008 x 1

Battery and Accessories:


Qty: 1 Matrix 12V 3000mAh NiMH Battery SKU: 14-0014 x 1
Qty: 1 Battery Charger (NiCad/NiMH, 12-1) SKU: 3101-0012-0001 x 1
Qty: 1 XT30 [MH-FC] to Tamiya [MH-FC] Adaptor (60mm Length) SKU: 3801-0203-0060 x 1
Qty: 1 Battery Mount (32-1) SKU: 1209-0032-0001 x 1

Channel:


Qty: 2 1120 Series U-Channel (1 Hole, 48mm Length) SKU: 1120-0001-0048 x 2
Qty: 4 1120 Series U-Channel (10 Hole, 264mm Length) SKU: 1120-0010-0264 x 4
Qty: 2 1120 Series U-Channel (17 Hole, 432mm Length) SKU: 1120-0017-0432 x 2
Qty: 2 1121 Series Low-Side U-Channel (1 Hole, 48mm Length) SKU: 1121-0001-0048 x 2
Qty: 2 1121 Series Low-Side U-Channel (3 Hole, 96mm Length) SKU: 1121-0003-0096 x 2
Qty: 2 1121 Series Low-Side U-Channel (5 Hole, 144mm Length) SKU: 1121-0005-0144 x 2
Qty: 2 1121 Series Low-Side U-Channel (10 Hole, 264mm Length) SKU: 1121-0010-0264 x 2
Qty: 2 1121 Series Low-Side U-Channel (17 Hole, 432mm Length) SKU: 1121-0017-0432 x 2

Extrusion:


Qty: 3 1109 Series goRAIL (72mm Length) SKU: 1109-0024-0072 x 3

U-Beams:


Qty: 2 1101 Series U-Beam (1 Hole, 8mm Length) SKU: 1101-0001-0008 x 2
Qty: 2 1101 Series U-Beam (7 Hole, 56mm Length) SKU: 1101-0007-0056 x 2
Qty: 2 1101 Series U-Beam (29 Hole, 232mm Length) SKU: 1101-0029-0232 x 2

L-Beams:


Qty: 2 1103 Series L-Beam (5 Hole, 40mm Length) SKU: 1103-0005-0040 x 1
Qty: 2 1103 Series L-Beam (7 Hole, 56mm Length) SKU: 1103-0007-0056 x 1
Qty: 2 1103 Series L-Beam (9 Hole, 72mm Length) SKU: 1103-0009-0072 x 1
Qty: 2 1103 Series L-Beam (13 Hole, 104mm Length) SKU: 1103-0013-0104 x 1
Qty: 2 1103 Series L-Beam (29 Hole, 232mm Length) SKU: 1103-0029-0232 x 1

Flat Beams:


Qty: 2 1102 Series Flat Beam (7 Hole, 56mm Length) SKU: 1102-0007-0056 x 1
Qty: 2 1102 Series Flat Beam (9 Hole, 72mm Length) SKU: 1102-0009-0072 x 1
Qty: 2 1102 Series Flat Beam (29 Hole, 232mm Length) SKU: 1102-0029-0232 x 1

Brackets and Mounts:


Qty: 8 1205 Series Dual Block Mount (1-2) SKU: 1205-0001-0002 x 4
Qty: 4 1137 Series Steel Flat Grid Bracket (1-2) SKU: 1137-0001-0002 x 2
Qty: 8 1201 Series Quad Block Pattern Mount (43-2) SKU: 1201-0043-0002 x 8
Qty: 8 1203 Series Block Mount (1-1) SKU: 1203-0001-0001 x 2
Qty: 4 1114 Series Flat Bracket (90-1) SKU: 1114-0090-0001 x 4
Qty: 4 1139 Series Steel Grid Plates (3 x 7 Hole, 24 x 56mm) SKU: 1139-0024-0056 x 2

Standoffs and Spacers:


Qty: 4 1501 Series M4 x 0.7mm Standoff (6mm OD, 12mm Length) SKU: 1501-0006-0120 x 1
Qty: 4 1501 Series M4 x 0.7mm Standoff (6mm OD, 24mm Length) SKU: 1501-0006-0240 x 1
Qty: 8 1501 Series M4 x 0.7mm Standoff (6mm OD, 43mm Length) SKU: 1501-0006-0430 x 2
Qty: 4 1501 Series M4 x 0.7mm Standoff (6mm OD, 48mm Length) SKU: 1501-0006-0480 x 1
Qty: 4 1502 Series 4mm ID Spacer (6mm OD, 4mm Length) SKU: 1502-0006-0040 x 1
Qty: 4 1502 Series 4mm ID Spacer (6mm OD, 8mm Length) SKU: 1502-0006-0080 x 1
Qty: 4 1502 Series 4mm ID Spacer (6mm OD, 12mm Length) SKU: 1502-0006-0120 x 1
Qty: 4 1504 Series 32mm OD Pattern Spacer (4mm Length) SKU: 1504-0032-0040 x 4
Qty: 1 1504 Series 32mm OD Pattern Spacer (6mm Length) SKU: 1504-0032-0060 x 1
Qty: 2 1504 Series 32mm OD Pattern Spacer (8mm Length) SKU: 1504-0032-0080 x 2
Qty: 3 1505 Series 32mm OD Counterbored Pattern Spacer (8mm Length) SKU: 1505-0032-0080 x 3

Gears:


Qty: 2 2302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 100 Tooth) SKU: 2302-0014-0100 x 2
Qty: 2
2303 Series Steel, MOD 0.8 Pinion Gear (8mm REX Bore, 20 Tooth) SKU: 2303-4008-0020 x 2
Qty: 4 2303 Series Steel, MOD 0.8 Pinion Gear (8mm REX Bore, 30 Tooth) SKU: 2303-4008-0030 x 4

Sprockets and Chain:


Qty: 250 3309 Series 8mm Pitch Plastic Chain Link SKU: 3309-0108-0050 x 5
Qty: 4 3307 Series 8mm Pitch Steel Set-Screw Sprocket (8mm REX Bore, 10 Tooth) SKU: 3307-4008-0010 x 4
Qty: 4 3310 Series 8mm Pitch Aluminum Hub Mount Sprocket (14mm Bore, 14 Tooth) SKU: 3310-0014-0014 x 4
Qty: 4 Acetal Timing Belt Idler (6mm ID x 12mm OD, 12mm Width, 1-1) SKU: 3413-0001-0001 x 2

Wheels:


Qty: 4 3601 Series Rhino Wheel (14mm Bore, 96mm Diameter) SKU: 3601-0014-0096 x 4
Qty: 4 3604 Series Omni Wheel (14mm Bore, 96mm Diameter) SKU: 3604-0014-0096 x 4
Qty: 2 3613 Series Gecko™ Wheel (14mm Bore, 72mm Diameter) SKU: 3613-0014-0072 x 2

Bearings:


Qty: 24 1611 Series Flanged Ball Bearing (8mm REX ID x 14mm OD, 5mm Thickness) SKU: 1611-0514-4008 x 12
Qty: 4 1616 Series Drop-Center Bearing Plate (32mm Pattern, 2mm Drop) SKU: 1616-0032-0002 x 1

Shafting:


Qty: 1 2106 Series Stainless Steel REX Shaft (8mm Diameter, 56mm Length) SKU: 2106-4008-0560 x 1
Qty: 10 2106 Series Stainless Steel REX Shaft (8mm Diameter, 80mm Length) SKU: 2106-4008-0800 x 10
Qty: 2 2106 Series Stainless Steel REX Shaft (8mm Diameter, 120mm Length) SKU: 2106-4008-1200 x 2

Hubs, Couplers and Collars:


Qty: 10 1309 Series Sonic Hub (8mm REX Bore) SKU: 1309-0016-4008 x 10
Qty: 4 1310 Series Hyper Hub (8mm REX Bore) SKU: 1310-0016-4008 x 4
Qty: 2 2910 Series Aluminum Clamping Collar (6mm ID x 19mm OD, 9mm Length) SKU: 2910-0920-4008 x 2
Qty: 1 4007 Series Hyper Coupler (8mm REX Bore to 8mm REX Bore) SKU: 4007-4008-4008 x 1

Screws:


Qty: 25 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 5mm Length) SKU: 2800-0004-0005 x 1
Qty: 50 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 6mm Length) SKU: 2800-0004-0006 x 2
Qty: 200 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 8mm Length) SKU: 2800-0004-0008 x 8
Qty: 100 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 10mm Length) SKU: 2800-0004-0010 x 4
Qty: 100 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 12mm Length) SKU: 2800-0004-0012 x 4
Qty: 25 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 14mm Length) SKU: 2800-0004-0014 x 1
Qty: 50 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 18mm Length) SKU: 2800-0004-0018 x 2
Qty: 25 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 20mm Length) SKU: 2800-0004-0020 x 1
Qty: 25 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 30mm Length) SKU: 2800-0004-0030 x 1

Nuts, Washers and Shims:


Qty: 200 2812 Series Zinc-Plated Steel Nylon-Insert Locknut (M4 x 0.7mm, 7mm Hex) SKU: 2812-0004-0007 x 8
Qty: 25 goRAIL Hurricane Nut SKU: 2805-0004-0108 x 1
Qty: 100 2801 Series Zinc-Plated Steel Washer (4mm ID x 8mm OD) SKU: 2801-0004-0008 x 4
Qty: 36 2807 Series Stainless Steel Shim (8mm ID x 11mm OD, 0.50mm Thickness) - 12 Pack SKU: 2807-0811-0500 x 3

Linkages:


Qty: 2 2808 Series Stainless Steel Threaded Rod (M4 x 0.7mm, 300mm Length) SKU: 2808-0004-0300 x 1
Qty: 4 2903 Series Nylon Ball Linkage (M4, 24.5mm Length) SKU: 2903-0004-0245 x 1

Wire Management:


Qty: 12 Plastic Grommet (14-1) SKU: 2911-0014-0001 x 1
Qty: 100 Zip Tie (100mm Length, Black) SKU: 2909-0101-0100 x 1

Tools:


Qty: 2 2.5mm Hex L-Key SKU: 4200-0090-0025 x 2
Qty: 2 3mm Ball-End Hex L-Key SKU: 4201-0090-0030 x 2
Qty: 1 Wera Tools 2.5mm Ball-End Hex L-Key SKU: 5027103001 x 1
Qty: 1 Wera Tools 3mm Ball-End L-Key SKU: 5027104001 x 1
Qty: 1 7mm Combination Nut Driver SKU: 4206-0070-0001 x 1
